Product Overview
JIS C 3410 compliant shipboard cables designed for marine electrical systems. Available in 2, 3, and 4-core configurations with EPR insulation and PCP sheath, providing excellent thermal stability and flame retardant properties for demanding shipboard applications.
Technical Standards & Certifications
-
Primary Standard: JIS C 3410-1999
-
Fire Safety: IEC 60332-1
Cable Construction & Materials

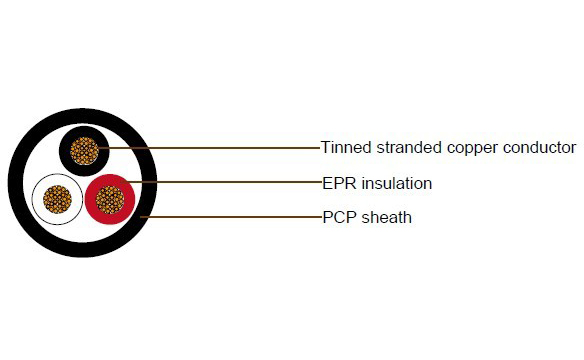

DPNP, TPNP, FPNP Construction
| Component | Code | Specification |
|---|---|---|
| Conductor | D(T,F) | Tinned annealed stranded copper, class 5 per IEC 60228 |
| Insulation | P | 85°C EPR as per JIS C 3410 |
| Cabling | Insulated conductors cabled with flame retardant fillers | |
| Sheath | NP | PCP as per JIS C 3410 |
Core Identification & Color Coding
-
2 Core: Black, White
-
3 Core: Black, White, Red
-
4 Core: Black, White, Red, Green
-
Outer Sheath Color: Black
Technical Specifications
| No. of Cores | Conductor Size mm² | Conductor Construction | Insulation Thickness mm | Sheath Thickness mm | Nom. Overall Dia mm | Tolerance mm | Cable Weight kg/km |
|---|---|---|---|---|---|---|---|
| 2 | 0.75 | 24/0.20 | 1.13 | 1.0 | 9.7 | 0.4 | 130 |
| 2 | 1 | 32/0.20 | 1.27 | 1.0 | 9.9 | 0.4 | 135 |
| 2 | 1.5 | 30/0.25 | 1.58 | 1.0 | 10.8 | 0.4 | 165 |
| 2 | 2.5 | 49/0.25 | 2.02 | 1.0 | 11.8 | 0.5 | 205 |
| 2 | 4 | 55/0.30 | 2.57 | 1.0 | 13.1 | 0.5 | 265 |
| 2 | 6 | 82/0.30 | 3.14 | 1.0 | 14.5 | 0.6 | 340 |
| 3 | 0.75 | 24/0.20 | 1.13 | 1.0 | 10.2 | 0.4 | 145 |
| 3 | 1 | 32/0.20 | 1.27 | 1.0 | 10.7 | 0.4 | 160 |
| 3 | 1.5 | 30/0.25 | 1.58 | 1.0 | 11.4 | 0.5 | 190 |
| 3 | 2.5 | 49/0.25 | 2.02 | 1.0 | 12.5 | 0.5 | 240 |
| 3 | 4 | 55/0.30 | 2.57 | 1.0 | 14.1 | 0.6 | 325 |
| 3 | 6 | 82/0.30 | 3.14 | 1.0 | 15.6 | 0.6 | 420 |
| 4 | 0.75 | 24/0.20 | 1.13 | 1.0 | 11.3 | 0.5 | 175 |
| 4 | 1 | 32/0.20 | 1.27 | 1.0 | 11.8 | 0.5 | 200 |
| 4 | 1.5 | 30/0.25 | 1.58 | 1.0 | 12.2 | 0.5 | 225 |
| 4 | 2.5 | 49/0.25 | 2.02 | 1.0 | 14.1 | 0.6 | 310 |
| 4 | 4 | 55/0.30 | 2.57 | 1.0 | 15.6 | 0.6 | 405 |
| 4 | 6 | 82/0.30 | 3.14 | 1.0 | 17.2 | 0.7 | 525 |
Features & Benefits
-
High Temperature Rating: 85°C EPR insulation for reliable thermal performance
-
Flexible Conductors: Class 5 tinned annealed copper per IEC 60228
-
Flame Retardant: Compliant with IEC 60332-1 standards
-
Multiple Configurations: 2, 3, and 4-core options available
-
Color Coded: Standard core identification for easy installation
-
Marine Grade: PCP sheath provides excellent marine environment resistance
-
Corrosion Resistant: Tinned copper conductors for harsh marine conditions
Application Areas
-
Shipboard power and lighting circuits
-
Marine equipment wiring
-
Naval vessel electrical systems
-
Offshore platform electrical installations
-
General marine electrical applications
*Note: All specifications are in accordance with JIS C 3410-1999 standards. Cable parameters may vary within manufacturing tolerances. These cables are designed for reliable performance in marine electrical systems with their EPR insulation and PCP sheath construction.*
