Product Overview
F5 QFCB Optical Fibre Cable provides dual protection against fire and mud contamination for critical offshore data transmission systems. Engineered with specialized mud-retardant sheath and fire-resistant construction, this cable ensures reliable communication and emergency system operation in the most challenging offshore drilling and production environments.
Key Features & Benefits
-
Dual Environmental Protection: Fire resistant and mud resistant properties for maximum reliability
-
Enhanced Mud Resistance: Specialized mud-retardant halogen-free thermoplastic compound sheath
-
Superior Fire Performance: Maintains data transmission capability during fire emergencies
-
Robust Mechanical Protection: Galvanized steel wire armour with central strength element
-
Complete Safety Compliance: Halogen-free construction with flame retardant properties
-
UV Resistance: UV-stabilized materials for long-term outdoor offshore performance
Applications
Critical offshore communication systems in demanding environments:
-
Offshore Drilling Operations: Drilling ships, jack-up rigs, and semi-submersible platforms
-
Production Facilities: TLP, SPAR, fixed platforms, and production units
-
FPSO/FSO Vessels: Floating production and storage operations
-
Mud-Prone Areas: Applications where mud contamination is a concern
-
Emergency Communication: Systems requiring operation during fire incidents
-
Harsh Offshore Environments: Exposed locations requiring dual environmental protection

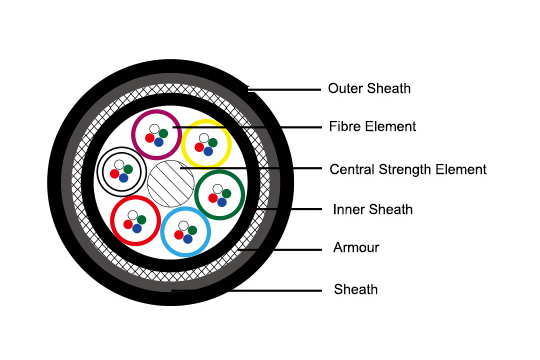

Construction
Advanced Protective Construction:
-
Fibre Element: Loose tube core design for optimal signal performance
-
Central Strength Element: Steel wire or fibre reinforced plastic (FRP)
-
Inner Sheath: Halogen-free and flame retardant thermoplastic compound
-
Armour: Galvanized steel wire braiding for mechanical protection
-
Outer Sheath: Halogen-free and flame retardant, UV-stabilized, thermoplastic compound SHF1
-
Additional Sheath: Mud retardant halogen-free thermoplastic compound
Key Advantages
-
Comprehensive Environmental Protection: Dual resistance to fire and mud ensures reliable operation in harsh conditions
-
Proven Offshore Performance: Specifically engineered for demanding offshore drilling and production environments
-
Enhanced Durability: Multiple protective layers withstand mechanical stress and environmental challenges
-
Safety Compliance: Halogen-free materials and flame retardant properties meet offshore safety standards
-
Maintained Signal Integrity: Robust construction protects fibre elements while ensuring optimal data transmission
-
Industry Standard Compliance: Designed to meet NEK 606 and other relevant offshore standards
