CHJP86 EMC Armored Marine Instrumentation Cable 250V | IEC 60092 Compliant | XLPE Insulation

Offshore Instrumentation and Signal Cable30
Description

Product Overview

CHJP86 EMC Armored Marine Instrumentation and Communication Cable 250V delivers superior electromagnetic compatibility for critical marine and offshore applications. Featuring advanced individual pair screening with aluminum tape and comprehensive copper armor, this cable ensures exceptional signal integrity in demanding environments including open deck areas and harsh marine conditions.

Key Features & Benefits

  • Advanced EMC Shielding: Individual pair screening with plastic-coated aluminum tape and drain wire

  • Complete EMI Protection: 100% copper tape overall screening with copper drain wires

  • Robust Armor System: Copper wire braid armor (>94% coverage) per IEC 60092-350

  • High-Temperature Capability: XLPE insulation rated for 90°C continuous operation

  • Marine-Grade Materials: Polyolefine sheath (SHF1/SHF2) compliant with IEC 60092-359

  • Enhanced Safety Features: Flame-retardant, halogen-free, and low smoke emission properties

Applications

Critical marine and offshore installations:

  • Shipboard Systems: Power, lighting, and control circuits in commercial vessels

  • Offshore Platforms: Fixed installations on production platforms and drilling rigs

  • Open Deck Areas: Protected installations in exposed marine environments

  • Instrumentation Networks: Data transmission and control systems

  • Power Distribution: Fixed wiring in marine electrical systems

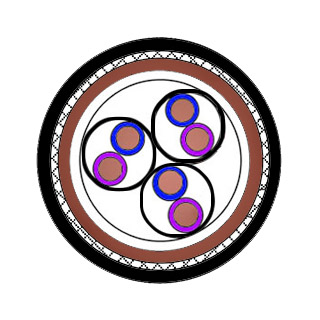

Construction

CHJP86 EMC Armored Marine Instrumentation Cable 250V | IEC 60092 Compliant | XLPE Insulation

Advanced multi-layer construction for optimal performance:

  1. Conductor: Stranded copper wire (IEC 60228 Class 2)

  2. Insulation: XLPE (IEC 60092-351)

  3. Twisted Pair:

    • Two insulated cores twisted together

    • Individual screening with plastic-coated aluminum tape

    • Tinned copper drain wire for each pair

  4. Bedding: Filler tape for structural stability

  5. Overall Screen:

    • Copper drain wire (all sizes)

    • 100% copper tape coverage

  6. Armour:

    • Copper wire braid, coverage >94% (IEC 60092-350)

    • Tinned copper wire braid available on request

  7. Sheath:

    • Polyolefine plastic, SHF1 (IEC 60092-359)

    • Thermosetting polyolefine, SHF2 available on request

    • Standard color grey, other colors on request

Specifications

Electrical Characteristics:

  • Rated Voltage: 150/250V (300V)

  • Transfer Impedance: 26dB over 1mΩ/m at 100MHz [20mΩ/m] (IEC 61196-1)

  • Operating Temperature: -40°C to +90°C

  • Installation Temperature: Minimum -15°C

Mechanical Properties:

  • Bending Radius:

    • Metal Braided Armored: 6 × cable diameter

    • Non-Armored (D≤25mm): 4 × cable diameter

    • Non-Armored (D>25mm): 6 × cable diameter

Electrical Data:

  • Loop resistance of pair (max. at +20°C)

  • Pair capacitance (nominal at 800Hz)

  • Loop inductance (nominal)

  • Insulation resistance (at +20°C)

Standards Compliance

  • Design Standard: IEC 60092-353

  • Conductor Standard: IEC 60228 Class 2

  • Insulation Standard: IEC 60092-351

  • Sheath Standard: IEC 60092-359

  • Flame Retardant: IEC 60332-1-2, IEC 60332-3-22 (Category A)

  • Halogen-free: IEC 60754 series

  • Smoke Emission: IEC 61034 series

Installation Notes

  • Suitable for fixed installation in most ship areas and open decks

  • For direct sunlight exposure, use protective covering or black outer sheath

  • Available in both fixed laying and flexible versions for mobile devices

  • Maintain minimum bending radii during installation to prevent damage
