FA-TPYCY Shipboard Power Cable | 0.6/1kV Three Core | Steel Wire Armored with PVC Cover | JIS C 3410 & IEC

JIS C HEPR/EPR Insulation Marine Shipboard Power Cables42
Description

Product Overview

FA-TPYCY is a flame-retardant, three-core shipboard power cable rated at 0.6/1kV, designed for fixed installations on ships and offshore units. Featuring double PVC protection over galvanized steel wire armor, EPR insulation, and tinned copper conductors, it delivers maximum reliability in demanding marine environments.

Key Features

  • Rated Voltage: 0.6/1kV

  • Conductor: Tinned annealed stranded copper (IEC 60228, Class 2)

  • Insulation: EPR (Ethylene Propylene Rubber)

  • Armor: Galvanized steel wire braid with outer PVC protective cover

  • Double Protection: Inner PVC sheath + Outer PVC cover over armor

  • Core Configuration: Three-core design for three-phase power systems

  • Flame Retardancy: IEC 60332-1 & IEC 60332-3 Category AF (FA-Type)

  • Standards: JIS C 3410-1999, IEC 60092-350 compliant

Applications

  • Fixed electrical installations on all types of ships and vessels

  • Offshore platforms and drilling units

  • Marine power distribution systems

  • Shipboard machinery and equipment power supply

  • Hazardous areas requiring enhanced cable protection

  • All marine environments requiring reliable three-phase power with maximum protection

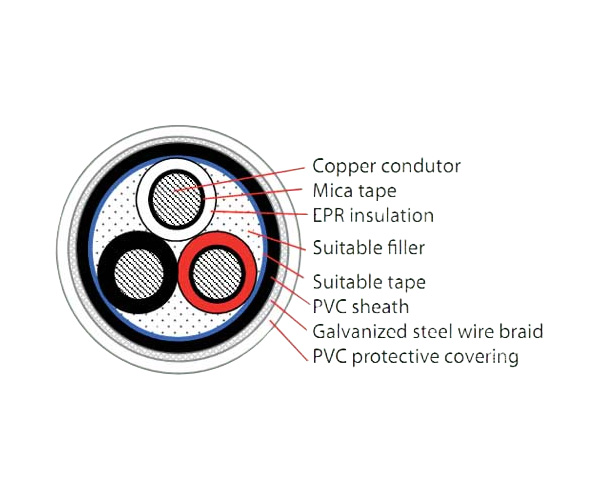

Cable Construction

FA-TPYCY Shipboard Power Cable | 0.6/1kV Three Core | Steel Wire Armored with PVC Cover | JIS C 3410 & IEC

  1. Conductor: Tinned annealed stranded copper, Class 2 (IEC 60228)

  2. Insulation: EPR (Ethylene Propylene Rubber)

  3. Filler: Non-hygroscopic material for moisture resistance

  4. Inner Sheath: PVC (Polyvinyl Chloride)

  5. Armor: Galvanized steel wire braid

  6. Protective Cover: PVC (Polyvinyl Chloride) - outer layer

Technical Specifications

Construction Details

Component Material Specification Standards Compliance
Conductor Tinned annealed stranded copper IEC 60228, Class 2
Insulation EPR (Ethylene Propylene Rubber) 85°C rating
Filler Non-hygroscopic material Moisture resistant
Inner Sheath PVC Primary protection
Armor Galvanized steel wire braid Mechanical protection
Outer Cover PVC Additional environmental protection
Standards JIS C 3410-1999, IEC 60092-350, IEC 60332-1, IEC 60332-3 Cat. AF Full compliance

Electrical & Mechanical Characteristics

  • Rated Voltage: 0.6/1kV

  • Operating Temperature: 85°C maximum continuous

  • Installation: Fixed laying in all ship locations

  • Protection Level: Enhanced double-layer protection with steel armor and PVC cover

Certifications & Standards

  • JIS C 3410-1999: Japanese Industrial Standard for shipboard cables

  • IEC 60092-350: Electrical installations in ships

  • IEC 60332-1: Flame test for single vertical insulated wire/cable

  • IEC 60332-3 Category AF: Flame retardancy for bunched cables (FA-Type)

Quality Assurance

  • Manufactured under strict quality control standards

  • Comprehensive testing for electrical and mechanical properties

  • Flame retardant certification verified for FA-Type

  • Double-layer protection system for enhanced durability

  • Suitable for harsh marine environments

  • Complete documentation and certification provided
