Product Overview

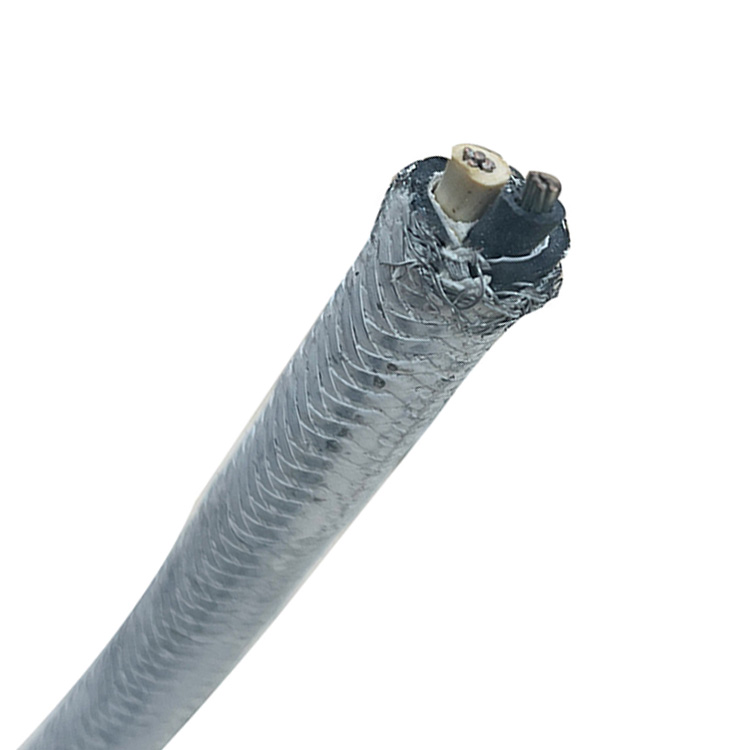

FA-TPYC is a flame-retardant, three-core shipboard power cable rated at 0.6/1kV, designed for fixed installations on ships and offshore units. Featuring EPR insulation, PVC sheath, and galvanized steel wire armor, it provides robust protection and reliable performance in demanding marine environments.
Key Features
-
Rated Voltage: 0.6/1kV
-
Conductor: Tinned annealed stranded copper (IEC 60228, Class 2)
-
Insulation: EPR (Ethylene Propylene Rubber)
-
Armor: Galvanized steel wire braid for mechanical protection
-
Sheath: PVC (Polyvinyl Chloride)
-
Core Configuration: Three-core design for three-phase applications
-
Flame Retardancy: IEC 60332-1 & IEC 60332-3 Category A (FA-Type)
-
Standards: JIS C 3410:2010 compliant
Applications
-
Fixed electrical installations on all types of ships and vessels
-
Offshore platforms and drilling units
-
Marine power distribution systems
-
Shipboard machinery and equipment power supply
-
Hazardous areas requiring armored cable protection
-
All marine environments requiring reliable three-phase power with mechanical protection
Cable Construction
-
Conductor: Tinned annealed stranded copper, Class 2 (IEC 60228)
-
Insulation: EPR (Ethylene Propylene Rubber)
-
Filler: Non-hygroscopic material for moisture resistance
-
Sheath: PVC (Polyvinyl Chloride)
-
Armor: Galvanized steel wire braid
Technical Specifications
Construction Details
| Component | Material Specification | Standards Compliance |
|---|---|---|
| Conductor | Tinned annealed stranded copper | IEC 60228, Class 2 |
| Insulation | EPR (Ethylene Propylene Rubber) | 85°C rating |
| Filler | Non-hygroscopic material | Moisture resistant |
| Inner Sheath | PVC | JIS C 3401 |
| Armor | Galvanized steel wire braid | Mechanical protection |
| Standards | JIS C 3410:2010, IEC 60332-1, IEC 60332-3 Cat. A | Full compliance |
Electrical & Mechanical Characteristics
-
Rated Voltage: 0.6/1kV
-
Operating Temperature: 85°C maximum continuous
-
Installation: Fixed laying in all ship locations
-
Protection Level: Enhanced mechanical protection with steel armor
Certifications & Standards
-
JIS C 3410:2010: Japanese Industrial Standard for shipboard cables
-
IEC 60332-1: Flame test for single vertical insulated wire/cable
-
IEC 60332-3 Category A: Flame retardancy for bunched cables (FA-Type)
Quality Assurance
-
Manufactured under strict quality control standards
-
Comprehensive testing for electrical and mechanical properties
-
Flame retardant certification verified
-
Armor protection tested for impact resistance
-
Suitable for harsh marine environments
-
Complete documentation and certification provided
