MIS Low Voltage Control Cables | 150/250V | IEC 60092

IEC 60092-Series Cables HEPR/EPR Insulation Marine Shipboard Control Cables39
Description

Product Overview

MIS Low Voltage Control Cables are specifically designed for control systems in marine vessels and offshore installations. Rated at 150/250V with 90°C operational capability, these cables feature tinned copper conductors, EPR insulation, and enhanced PVC sheath for reliable performance in demanding maritime environments.

Key Features

  • Voltage Rating: 150/250V

  • Temperature Rating: 90°C continuous operation

  • Conductor: Tinned annealed copper wire

  • Insulation: EPR (Ethylene Propylene Rubber)

  • Screen Option: Al/Polyester tape with drain wires (MIS(c) type)

  • Sheath: Enhanced PVC for marine conditions

  • Flame Retardancy: IEC 60332-1 & -3 (Category A) certified

  • Models Available: MIS (unshielded), MIS(c) (shielded)

Applications

  • Control systems on cargo ships and passenger vessels

  • Offshore oil platforms and drilling rigs

  • Marine building automation systems

  • Shipboard instrumentation and control circuits

  • Navigation and communication system wiring

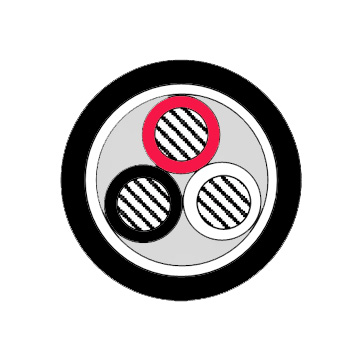

Cable Construction

MIS Low Voltage Control Cables | 150/250V | IEC 60092

  1. Conductor: Tinned annealed copper wire - provides corrosion resistance

  2. Insulation: EPR - ensures thermal stability and flexibility

  3. Overall Screen (MIS(c) only): Al/Polyester tape with drain wires - EMI protection

  4. Sheath: Enhanced PVC - resistant to oils, chemicals, and marine atmosphere

Technical Specifications

Electrical Characteristics

  • Rated Voltage: 150/250V

  • Operating Temperature: 90°C maximum continuous

  • Voltage Test: Withstands AC 1.5kV for 5 minutes without breakdown

Bending Radius Requirements

Cable Structure Cable Outer Diameter Minimum Bending Radius
Metal Braided Armored All sizes 6 × D
Non-Armored D ≤ 25 mm 4 × D
Non-Armored D > 25 mm 6 × D

Note: D = Cable outer diameter

Certifications & Standards

  • IEC 60092-350: General requirements for shipboard cables

  • IEC 60092-351: Insulating materials for marine cables

  • IEC 60092-354: Cables with extruded solid insulation

  • IEC 60092-359: Cables with special fire performance

  • IEC 60332-1: Flame test for single vertical cable

  • IEC 60332-3: Flame spread test for bunched cables (Category A)

Model Variants

  • MIS: Standard control cable without overall screen

  • MIS(c): With Al/Polyester screen and drain wires for EMI protection

Quality Assurance

  • Manufactured under strict quality control procedures

  • Regular testing for electrical and mechanical properties

  • Compliance with international marine safety standards

  • Documentation and certification provided with shipments
