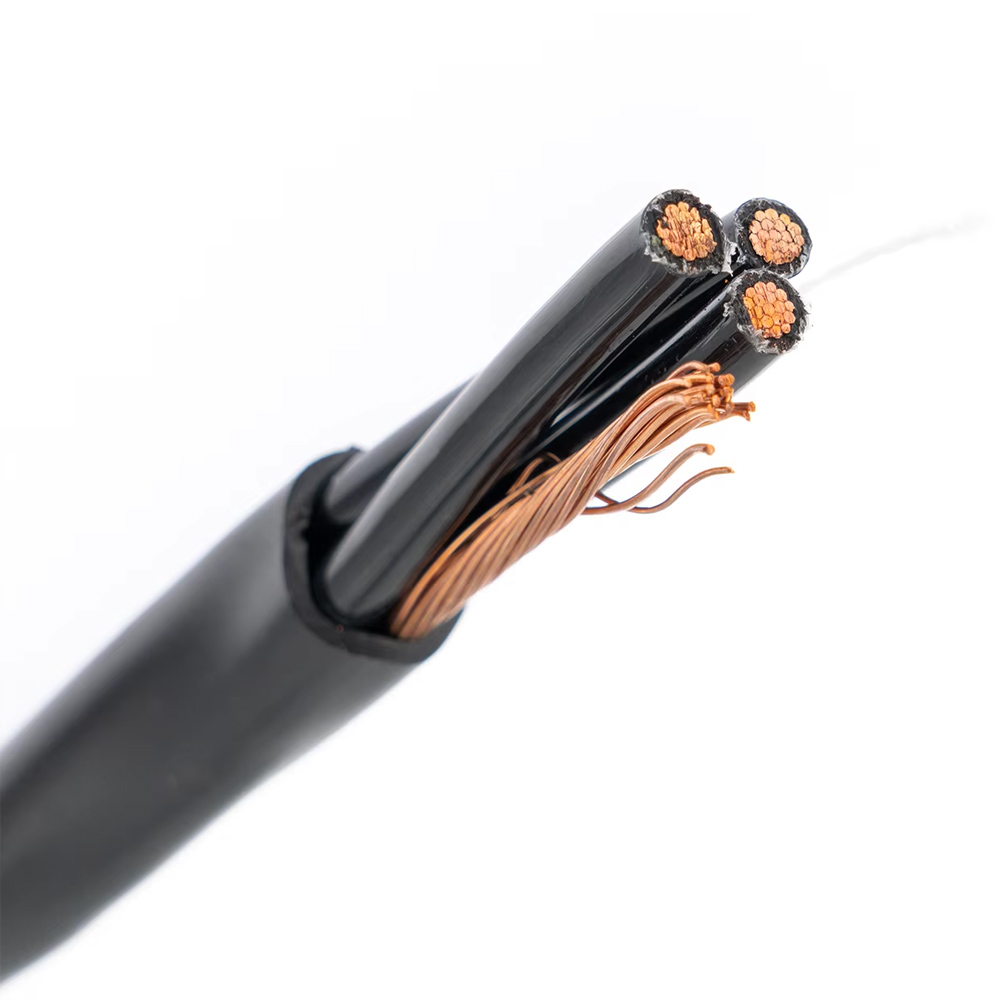

Dual-Rated CIC-TC/TC-ER Power Cable - 3C 8AWG/3C 10AWG/3C 12AWG/3C 14AWG
Product Overview
UL 1277-certified CIC-TC/TC-ER cable delivers robust power distribution for industrial applications. Featuring XHHW-2/THHN insulated copper conductors and UV-resistant PVC jacketing, this 600V-rated cable excels in cable trays, direct burial, aerial messenger systems, and wet/dry environments up to 90°C.
Key Applications
-
Industrial power & lighting circuits
-
Cable tray systems (ventilated/non-ventilated)
-
Direct earth burial & wet locations
-
Aerial installations (messenger-supported)
-
Control/signal wiring in conduits/ducts
Construction & Materials
| Layer | Standard Specification | Optional Upgrade |
|---|---|---|
| Conductor | Stranded annealed bare copper | + Bare copper ground conductor |
| Insulation | XLPE (XHHW-2 rated) | PVC+Nylon (THHN) |
| Shielding | - | Copper Tape (20% overlap) |
| Outer Jacket | UV-resistant PVC (Black) | LSZH Jacket (Halogen-free) |
*UL File E468830 | VW-1 Flame Test Certified*
Technical Specifications
| Cond. | Size (AWG) | Stranding | Insulation Thick (mm) | Jacket Thick (mm) | Cable OD (mm) | Ground Wire |
|---|---|---|---|---|---|---|
| 3 | 14 | 7/.0242" | 0.76 | 1.14 | 9.9 | - |
| 3 | 12 | 7/.0305" | 0.76 | 1.14 | 11.0 | - |
| 3 | 10 | 7/.0385" | 0.76 | 1.52 | 12.3 | - |
| 3 | 8 | 7/.0486" | 1.14 | 1.52 | 16.3 | - |
Additional sizes available upon request
Performance Features
-
Environmental Resilience
-
90°C dry/wet operation
-
Direct burial & UV exposure rating
-
Oil/corrosion resistant (NEMA WC70/ICEA S-95-658)
-
-
Safety Compliance
-
VW-1 flame retardancy
-
LSZH option for low-smoke environments
-
-
Electrical Integrity
-
CTS shielding eliminates EMI/RFI interference
-
XLPE insulation maintains dielectric strength at high temps
-
Engineering Selection Guide
| Application | Recommended Configuration |
|---|---|
| Hazardous Locations | CTS Shielding + LSZH Jacket |
| High-EMI Environments | Copper Tape Shielding (20% overlap) |
| Vertical Runs (TC-ER) | Reinforced jacket + XHHW-2 insulation |
| Outdoor/Aerial | UV-resistant PVC + Messenger Support |
Complies with NEC Article 336 (Tray Cables)
Certifications & Standards
-
Primary: UL 1277 (Power & Control Tray Cable)
-
Conductors: ASTM B-8 / ASTM B-787
-
Insulation: UL 44 (XHHW-2/THHN)
-
Environmental: RoHS/REACH compliant
Installation Notes
-
Bending Radius: Minimum 6x cable diameter
-
Aerial Support: Secure to messenger wire per NEC 392.10(H)
-
Direct Burial: Maintain 24" depth (NEC Table 300.5)
-
Conduit Transition: Use UL514B listed fittings
