Dual-Rated THHN/THWN-2 Copper Wire - 12 AWG/10 AWG/8 AWG | 4/0 AWG/250 kcmil/500 kcmil
Product Overview
CT-rated THHN/THWN-2 cable delivers superior performance for power distribution in residential, commercial, and industrial applications. Featuring annealed copper conductors, flame-retardant lead-free PVC insulation, and abrasion-resistant nylon jacketing, this 600V-rated wire meets rigorous UL 83/1063 standards for both dry and wet locations.
Key Applications
-
Conduit & cable tray installations
-
Service entrances, feeders & branch circuits
-
Machine tool wiring (MTW)*
-
Commercial lighting & power systems
-
Industrial control panels
*Stranded conductors only for MTW applications

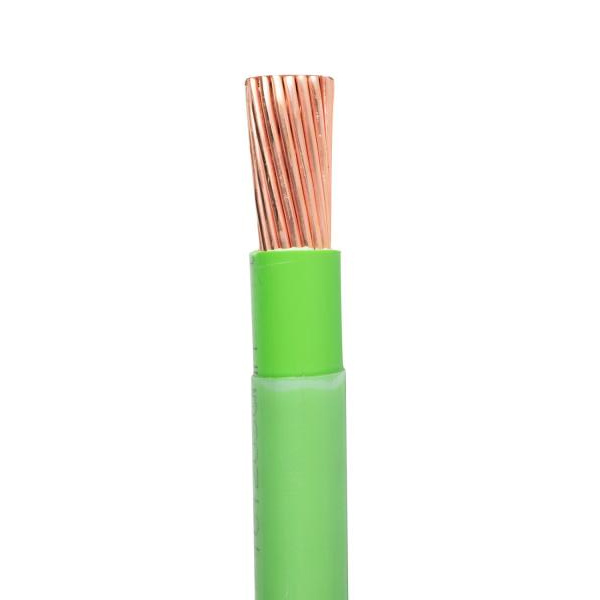

Construction & Materials
| Layer | Specification |
|---|---|
| Conductor | Annealed copper (solid/stranded), 2.0mm² to 500mm² |
| Insulation | Lead-free PVC • Flame-retardant • UL-listed • RoHS compliant |
| Outer Jacket | Polyamide (Nylon) • Oil/chemical resistant • Abrasion-proof • Low-friction surface |
| Color Coding | Standard: Black, White, Red, Blue, Green, Yellow (custom colors available) |
Technical Specifications
| Parameter | Rating |
|---|---|
| Voltage | 600V AC |
| Temperature | • 90°C dry/damp locations • 75°C wet locations (THWN) • 90°C wet locations (THWN-2) |
| Standards | UL 83, UL 758 (AWM), UL 1063 (MTW*), PNS 35 |
| Environmental | RoHS compliant • Lead/Pb-free • Halogen-free formulation |
Performance Advantages
-
Enhanced Safety
-
FT1 flame rating exceeds standard THHN cables
-
Self-extinguishing properties reduce fire propagation
-
-
Durability
-
Nylon jacket resists oils, chemicals & abrasion
-
Withstands mechanical stress during installation
-
-
Eco-Compliance
-
100% lead-free stabilizers
-
Meets global RoHS requirements
-
-
Installation Efficiency
-
Low-friction nylon allows 40% easier conduit pulling
-
Color-coded per NEC phase identification
-
Engineering Selection Guide
| Conductor Size | Insulation Thickness | Nylon Thickness | Typical Use Cases |
|---|---|---|---|
| 2.0–6.0mm² | 0.76mm | 0.15mm | Branch circuits • Control wiring |
| 10–50mm² | 0.76–1.14mm | 0.20mm | Feeders • Lighting systems |
| 70–500mm² | 1.52–2.41mm | 0.30mm | Service entrances • High-current runs |
Refer to NEC Table 310.16 for ampacity calculations
Compliance & Installation
-
NEC Classification: Types THHN & THWN-2 (Article 310)
-
Bending Radius: Minimum 5x cable diameter
-
Conduit Fill: Follow NEC Chapter 9 Table 1
-
Wet Locations: Use THWN-2 rating for 90°C wet environments
Packaging Options
-
Coils: ≤4mm² (500ft/152m)
-
Wooden Drums: 6–120mm² (1000ft/305m)
-
Reels: >120mm² (custom lengths)
