Product Overview
The THHN/THWN/T90 Wire is a versatile, high-performance electrical wire designed for general-purpose wiring in conduit, raceways, and machine tool/appliance control circuits. Rated for 600V and compliant with UL 83, CSA C22.2 No.75, and CSA FT-1 standards, this wire combines durability, flexibility, and fire resistance for safe and reliable power distribution in demanding environments.
Key Features & Benefits
Triple Certification – Meets UL (cUL), CSA, and Canadian Electrical Code requirements.
Multi-Environment Rated – Suitable for dry (90°C), wet (75°C), and oily (75°C) conditions.
Flame-Resistant – Passes CSA FT-1 vertical flame test for enhanced safety.
Durable Construction – PVC insulation + nylon coating for abrasion, moisture, and chemical resistance.
Wide Color Options – Available in 11 standard colors (black, red, blue, etc.) + custom striping.
Applications
-
Commercial/Industrial Wiring: Conduit or raceway installations in HVAC systems, control panels, and machinery.
-
Machine Tools & Appliances: Motor leads, control circuits, and equipment power connections.
-
Residential & Infrastructure: Service entrance feeders, branch circuits, and outdoor lighting (where raceways are used).
-
Oil-Resistant Environments: Ideal for industrial facilities with exposure to lubricants or mild chemicals.
Technical Specifications
Electrical & Thermal Performance
-
Voltage Rating: 600V AC/DC.
-
Temperature Ratings:
-
Dry: Up to 90°C (194°F).
-
Wet/Oily: Up to 75°C (167°F).
-
-
Insulation Resistance: ≥20 MΩ·km at 20°C.
Conductor & Materials
-
Conductor: Bare, soft annealed stranded copper (AWG sizes as per project needs).
-
Insulation: High-grade PVC (Polyvinyl Chloride) for flexibility and heat resistance.
-
Jacket: Nylon coating for added abrasion and moisture protection.
Safety & Compliance
-
Flame Test: CSA FT-1 compliant (self-extinguishing).
-
Standards: UL 83, CSA C22.2 No.75, LL90458.

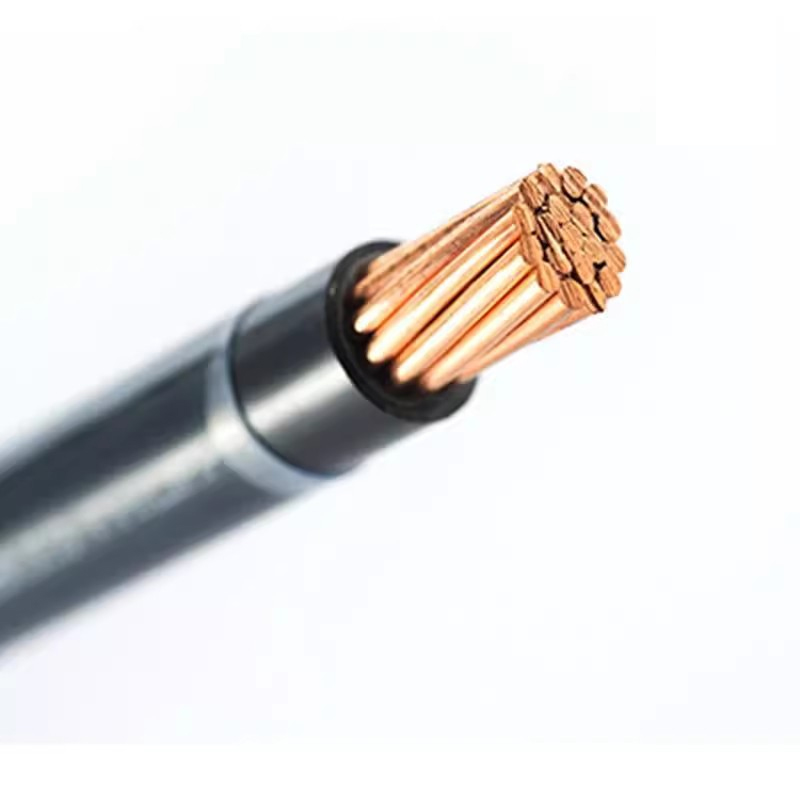

Construction Details
-
Conductor:
-
Stranded copper for superior flexibility and ease of installation.
-
Soft annealed design reduces risk of breakage during bending.
-
-
Insulation:
-
Thermoplastic PVC ensures resistance to heat, oils, and chemicals.
-
-
Outer Coating:
-
Nylon layer enhances durability in harsh industrial environments.
-
Color Options
-
Standard Colors: Black, Blue, Green, Brown, Red, Orange, Yellow, Gray, White, Pink, Tan.
-
Customization: Striped or specialty colors available upon request.
Compliance & Certifications
-
UL Listed: UL 83, cUL (Canada).
-
CSA Approved: CSA C22.2 No.75, FT-1 flame test.
-
RoHS Compliant: Free from restricted hazardous substances.
Packaging & Ordering
-
Standard Lengths: 500 ft, 1000 ft, or custom spools.
-
Lead Times: Stocked for quick delivery; custom orders require 2-3 weeks.
Why Choose THHN/THWN/T90 Wire?
Cost-Effective: Durable design reduces replacement costs in harsh settings.
Easy Installation: Stranded copper bends smoothly around tight corners.
Versatility: Compatible with THHN (dry), THWN (wet), and T90 (Canadian) applications.
Code Compliance: Meets NEC, CEC, and OSHA requirements for commercial projects.
FAQs
Q: Can this wire be used outdoors or in wet locations?
A: Yes! The THWN rating allows use in wet environments when installed in conduit.
Q: What’s the difference between THHN and T90?
A: T90 meets Canadian standards (CSA) with a 90°C dry rating, while THHN is UL-listed for U.S. markets.
Q: Is nylon coating necessary?
A: Yes. The nylon layer protects against abrasion and moisture, extending wire lifespan.
