Description

IEC 60092 Marine Shipboard Power Cable – EPR Insulated, Tinned Copper (0.6/1kV-8.7/15kV) Low Smoke Halogen-Free

Product Overview

EPR Insulated Marine-Grade Power Cable with Tinned Copper Conductors
Engineered for critical marine and offshore applications, this IEC 60092-compliant cable features EPR insulation for superior flexibility, moisture resistance, and thermal stability. With tinned copper construction and optional armored protection, it delivers reliable performance in harsh saltwater environments while meeting stringent international safety standards.

Key Specifications

Parameter Specification
Voltage Rating 0.6/1kV, 3.6/6kV, 6/10kV, 8.7/15kV
Conductor Tinned copper (IEC 60228 Class 2/5)
Insulation Ethylene Propylene Rubber (EPR) per IEC 60092-359
Temperature Range -40°C to +85°C (operating)
Flame Safety DA (IEC 60332-1) + SC Grade (IEC 61034-2 / IEC 60754-2)
Certifications CCS, LR, ABS, DNV, BV, GL, NK, KR, RINA

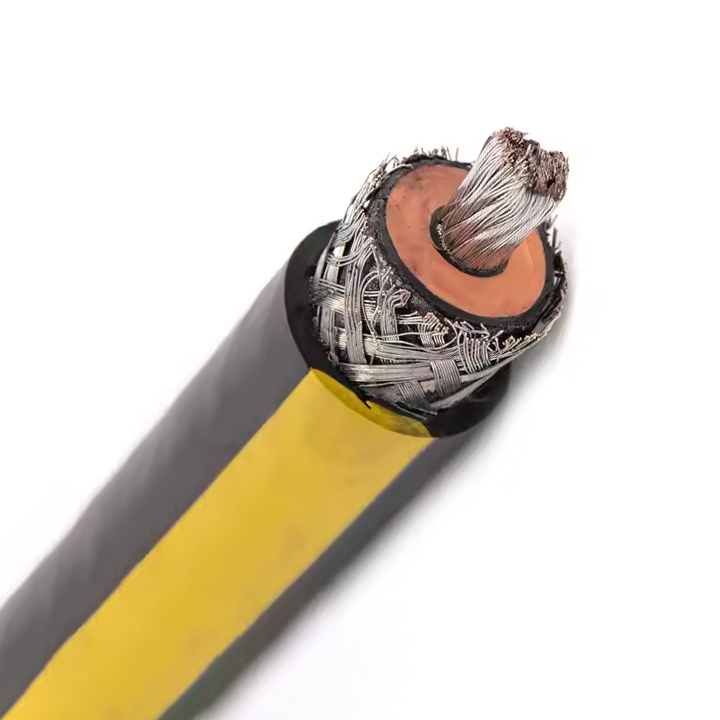

Corrected & Enhanced Construction

  1. Conductor: Tinned copper (ASTM B33)

  2. Insulation: EPR with hydrolysis resistance

  3. Barrier Tape: Non-hygroscopic swellable tape

  4. Inner Sheath: PO (SHF1/SHF2) - Halogen-free

  5. Armor (Optional): Tinned copper/Galvanized steel braid

  6. Outer Sheath: PO (SHF1/SHF2)

Performance Features

1. EPR Insulation Properties

  • Moisture/chemical resistance

  • -40°C flexibility

  • 135°C short-circuit rating

2. Flame Safety Compliance

Rating Standard Performance
DA IEC 60332-1 Single-cable flame retardancy
SA IEC 60332-3 Cat.A Bunched cable flame retardancy
SC IEC 61034-2 / 60754-2 Halogen-free, low smoke & toxicity

3. Bending Radius

Configuration Min. Radius
Non-armored (D≤25mm) 4 × O.D.
Non-armored (D>25mm) 6 × O.D.
Armored 6 × O.D.

Technical Configuration

Conductor Sizes: 0.75mm² to 300mm²
Core Options: 1, 2, 3, 4, 7, 10, 12, 14, 16, 19, 24, 27, 30, 33, 37

Applications

  • Shipboard power distribution

  • Offshore platform systems

  • Emergency lighting circuits

  • Coastal power stations

Compliance & Certifications

Standards: IEC 60092-350/351/359, IEC 60332-1/3
Approvals: ABS • BV • CCS • DNV • GL • KR • LR • NK • RINA

Product Advantages

1. Superior Marine Performance

  • 30% better moisture barrier vs. XLPE

  • Saltwater corrosion resistance

2. Installation Efficiency

  • 40% lower bending force

  • Maintains flexibility at -40°C

3. Enhanced Safety

  • Halogen-free smoke (IEC 60754-2)

  • Low toxicity gas emission

4. Long-Term Reliability

  • 35-year service life in humidity tests

  • Withstands 20,000+ short-circuit cycles

Critical Use Cases:

  • Dynamic applications with vibration

  • High-humidity zones (bilges, machinery spaces)

  • Circuits requiring 90°C+ continuous operation
