Product Overview

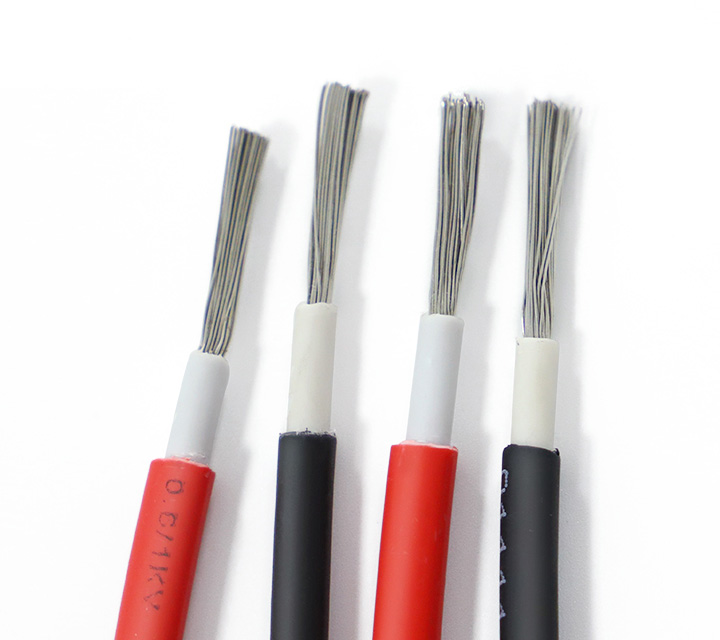

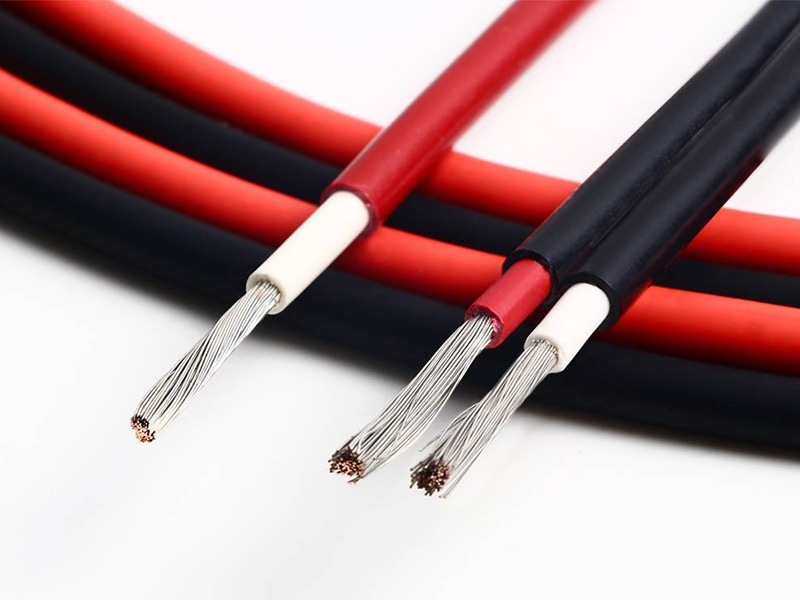

UL 4703 PV Cable delivers robust power transmission for solar installations in 8/10/12 AWG configurations. Featuring tinned copper conductors and XLPO/LSZH insulation, this cable operates from -40°C to 125°C with dual-rated voltage (600V AC/2000V DC). Certified for fixed/free movement in industrial, agricultural, and explosion-hazardous environments, it withstands UV, ozone, moisture, and mechanical stress.
Key Specifications
| Parameter | Specification |
|---|---|
| Voltage Rating | 600V AC / 1000V AC / 2000V DC |
| Temperature Range | -40°C to +90°C (operational) +125°C (conductor max) |
| Conductor | Tinned annealed copper (UL 4703 compliant) |
| Insulation | XLPO (standard) / LSZH jacket (customizable) |
| Colors | Black, Red (custom options) |
| Certifications | UL 4703, TÜV, RoHS |
| Protection Class | II |
Technical Data Table
| AWG | Conductor (Stranding) |
Cond. Ø (mm) | Insul. Thick. (mm) | Cable Ø (mm) | Max. Resistance (Ω/km) |
|---|---|---|---|---|---|
| 8 | 19/0.749±0.01 | 3.75 | 1.14 | 6.3±0.3 | ≤2.144 |
| 10 | 19/0.594±0.01 | 2.97 | 0.76 | 4.8±0.2 | ≤3.409 |
| 12 | 19/0.471±0.01 | 2.36 | 0.76 | 4.2±0.2 | ≤5.43 |
Material Advantages
-
Conductor
-
Tinned copper strands: Corrosion resistance, oxidation protection
-
-
Insulation System
-
Inner: XLPO (Cross-linked Polyolefin) for thermal stability
-
Outer: LSZH (Low Smoke Zero Halogen) jacket for fire safety
-
-
Environmental Resistance
-
UV/Ozone/Moisture resistant (IEC 60754-1 compliant)
-
Applications
-
Solar Panel Interconnects: Roof-mounted arrays, ground-mount systems
-
Industrial Zones: Explosion-hazardous areas (ATEX/IECEx compatible)
-
Harsh Environments: Underground conduits, coastal plants, desert farms
-
Mobile Installations: Robotic solar cleaners, tracking systems
Engineering Benefits
Ultra-Wide Temp Range: Performs from Arctic cold to desert heat
2000V DC Rating: Ideal for utility-scale solar farms
Bending Flexibility: 6×OD bending radius for tight spaces
Safety Compliance: Flame-retardant (IEC 60332-1), low smoke emission
Standards & Certifications
UL 4703 | TÜV 2 PfG 1169 | RoHS | IEC 62930
📦 Ordering Information
-
Packaging: 500m/1000m drums
-
Customization: LSZH jackets, custom colors, cut lengths
-
Support: Technical datasheets & project specifications
