Product Overview

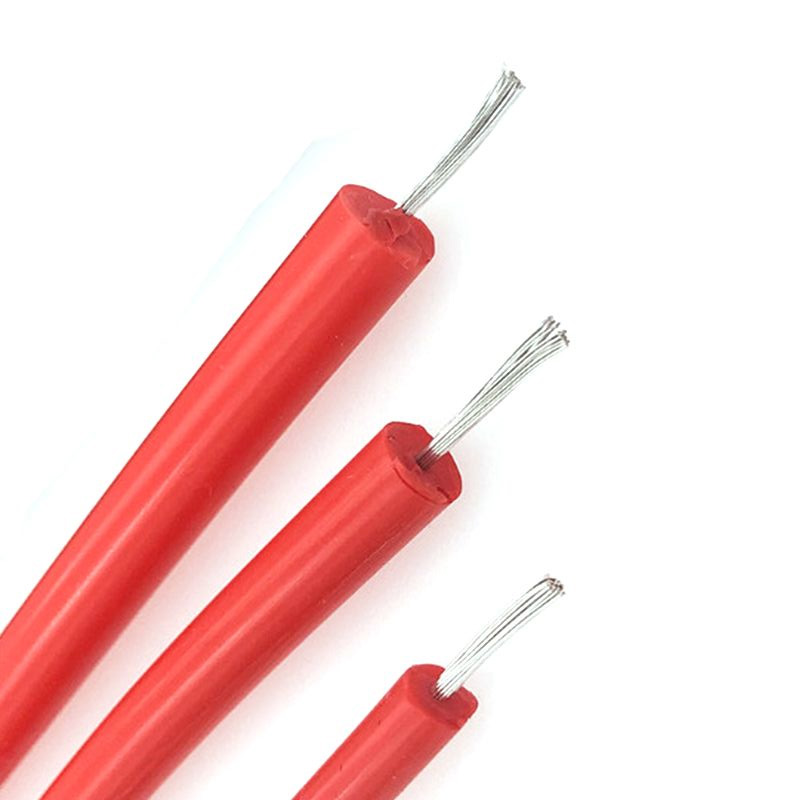

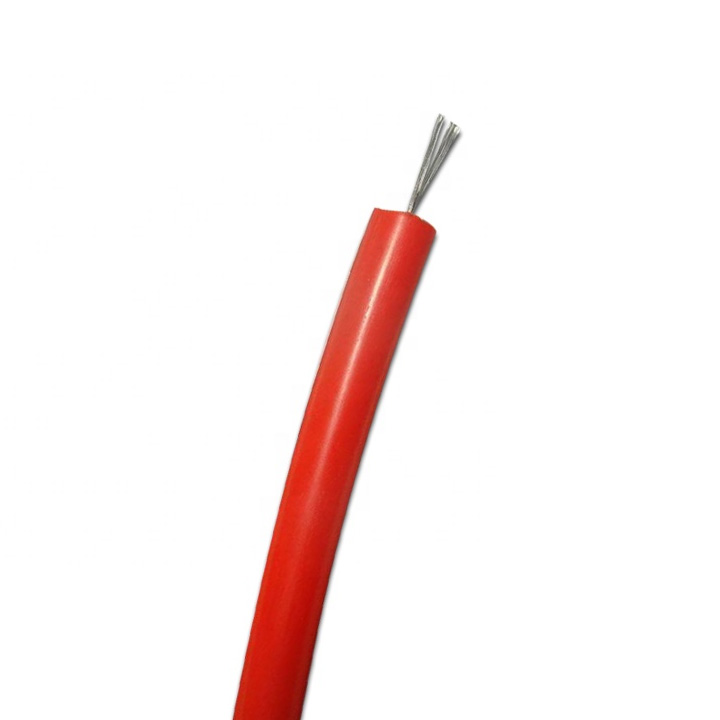

The AGG Series High-Flex Red Silicone High Voltage Cable is engineered for demanding applications requiring extreme flexibility, superior thermal stability, and reliable high-voltage insulation. Featuring tinned copper conductors and premium silicone rubber insulation, this cable excels in high-temperature environments while maintaining exceptional electrical safety. Ideal for electronics, instruments, and industrial equipment, it meets UL/CUL standards for global compliance.
Key Features & Benefits
| Property | Specification |
|---|---|
| Voltage Rating | 5KV, 12KV, 15KV, 20KV, 25KV, 30KV, 40KV, 50KV, 60KV |
| Temperature Range | -60°C to +200°C |
| Conductor | Tinned Copper Strand (Enhanced Corrosion Resistance) |
| Insulation | High-Grade Silicone Rubber (AGG Series) |
| Color | Red (Visual Safety Identification) |
| Flexibility | Ultra-High Bend Radius for Tight Installations |
| Certifications | UL, CUL Standards |
Technical Specifications
| Model | Conductor Section (mm²) | Insulation Thickness (mm) | Withstand Voltage |
|---|---|---|---|
| AGG-5KV | 0.2~4 | 1.0 | 5 KV |
| AGG-12KV | 0.2~4 | 1.3 | 12 KV |
| AGG-15KV | 0.2~4 | 1.7 | 15 KV |
| AGG-20KV | 0.2~4 | 1.8 | 20 KV |
| AGG-25KV | 0.2~4 | 2.8 | 25 KV |
| AGG-30KV | 0.2~4 | 3.2 | 30 KV |
| AGG-40KV | 0.2~4 | 4.2 | 40 KV |
| AGG-50KV | 0.2~4 | 5.5 | 50 KV |
| AGG-60KV | 0.2~4 | 7.0 | 60 KV |
Material & Structural Design
-
Conductor:
-
Tinned copper strands (0.2–4 mm² cross-section) for optimal conductivity and oxidation resistance.
-
-
Insulation:
-
High-purity silicone rubber providing:
-
Extreme temperature endurance (-60°C to +200°C).
-
Aging/ozone resistance and flame retardancy.
-
Outstanding flexibility (repeated bending without cracking).
-
-
Application Scenarios
-
Electronics: TV receiver output transformers, CRT picture tube electrodes, high-voltage rectifiers.
-
Industrial: Power supplies, medical equipment, welding machines.
-
Instrumentation: Test leads, laboratory HV setups, aerospace sensors.
-
Critical Environments: High-heat zones, dynamic flexing systems, and compact installations.
Engineering Selection Guide
-
Voltage: Match model suffix (e.g., AGG-30KV for 30KV systems).
-
Conductor Size: Select 0.2–4 mm² based on current load.
-
Environment: Optimal for temperatures exceeding standard PVC/PE cables.
-
Compliance: Use in UL/CUL-certified equipment for North American markets.
Standards & Certifications
-
Test Standards: UL 3239, CAN/CSA C22.2 No. 2556.
-
Safety Ratings: VW-1 flame rating, 100% HIPOT tested.
