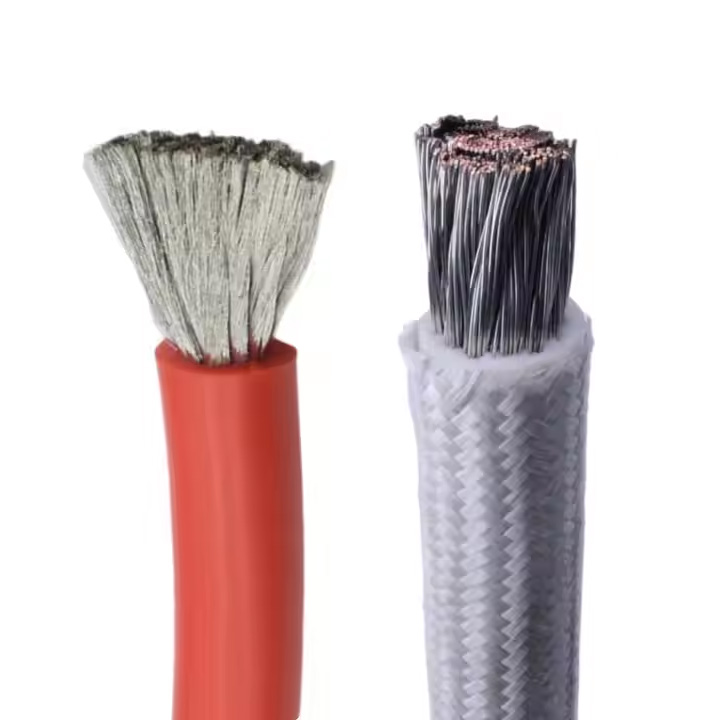

Product Overview
SIAF and SIAF-GL series silicone rubber cables deliver exceptional thermal resilience (-60°C to +180°C) for extreme environments. Featuring tinned copper conductors and halogen-free insulation, they maintain flexibility in critical applications like steel mills, power plants, and industrial ovens. The SIAF-GL variant adds glass fiber braiding for enhanced mechanical protection where conduit isn't feasible.

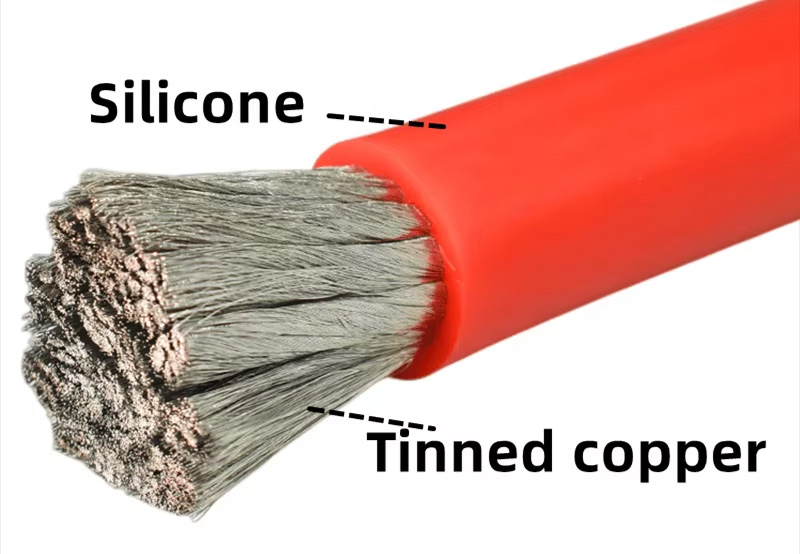

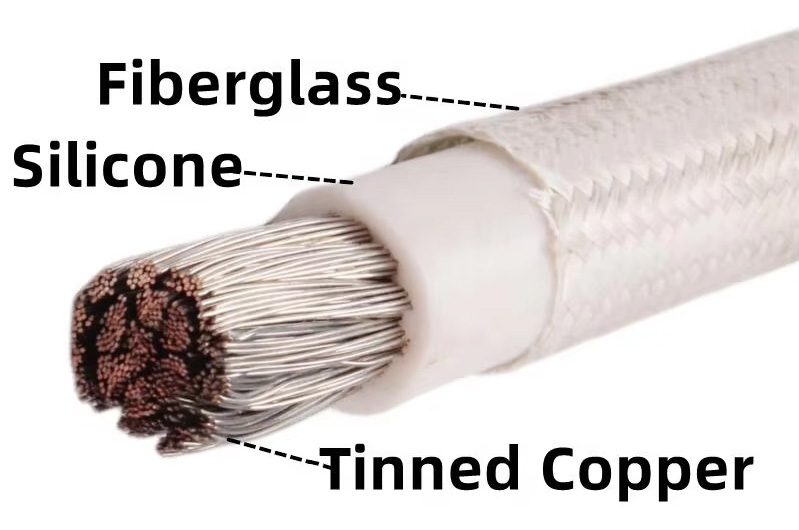

Construction
| Layer | SIAF Cable | SIAF-GL Cable |
|---|---|---|
| Conductor | Tinned copper (Class 2 per IEC 60228) | Tinned copper (Class 2) |
| Insulation | Silicone rubber (SiR) | Silicone rubber (SiR) |
| Reinforcement | - | Fiberglass braid (temperature-resistant) |
| Halogen/Smoke | Halogen-free, low smoke emission | Halogen-free, low smoke emission |
Key Specifications
| Parameter | Value |
|---|---|
| Temperature Range | -60°C to +180°C (continuous) |
| Voltage Rating | 0.6/1kV (600V/1000V) |
| Flame Performance | IEC 60332-1-2 compliant |
| Halogen Content | ≤ 15 ppm (EN 50642) |
| Smoke Density | ≤ 60% (IEC 61034-2) |
Technical Data Table
| Cross-Section (mm²) | Conductor Construction | Approx. Diameter (mm) | Current Rating (A)* | Weight (kg/km) |
|---|---|---|---|---|
| 16mm² | 126/0.40mm | 9.8 ±0.3 | 105 | 290 |
| 35mm² | 276/0.40mm | 12.5 ±0.4 | 160 | 520 |
| 50mm² | 396/0.40mm | 14.2 ±0.4 | 195 | 720 |
| 75mm² | 540/0.40mm | 16.8 ±0.5 | 240 | 1,050 |
| 95mm² | 756/0.40mm | 19.1 ±0.6 | 285 | 1,380 |
*Current rating based on 30°C ambient air temperature (IEC 60502-1). Derate for higher ambient temps.
Material Advantages
-
Tinned Copper Conductor:
-
Oxidation resistance at high temps
-
Superior conductivity (≥ 98% IACS)
-
Solderability for termination
-
-
Silicone Rubber Insulation:
-
Maintains flexibility at -60°C
-
Non-tracking under arc exposure
-
UV/ozone resistant
-
-
Glass Fiber Braid (SIAF-GL):
-
Continuous withstand: 550°C (short-circuit)
-
Abrasion/cut-through protection
-
Non-melting reinforcement
-
Application Scenarios
SIAF Cable (Unbraided):
-
Internal wiring of ovens/industrial heaters
-
Switchboard installations in smelters
-
Textile machinery control circuits
-
Lighting systems in high-bay warehouses
SIAF-GL Cable (Braided):
-
Steel mill ladle crane wiring
-
Power plant burner management systems
-
Ship engine room circuits (IEC 60092 compliant)
-
Aircraft ground support equipment
-
Foundry sensor connections
Engineering Selection Guide
| Consideration | SIAF | SIAF-GL |
|---|---|---|
| Mechanical Stress | Low | High |
| Open Installation | ✗ | ✓ |
| Chemical Exposure | ✓ | ✓ |
| Flexibility Need | ✓✓ | ✓ |
| Fire Safety Critical | ✓✓ | ✓✓ |
Installation Notes:
Minimum bending radius: 6× cable diameter
Use ceramic terminals above 150°C
Avoid sharp edges near glass braiding
Standards Compliance
-
Insulation: DIN VDE 0282 Part 14
-
Conductor: IEC 60228 Class 2
-
Fire Performance: EN 60332-1-2 / IEC 60332-1-2
-
Halogen Free: EN 50642 / IEC 60754-1
