High-Performance 2 Core 22 AWG Braided Shield Silicone Cable

Overview

This medical-grade single pair shielded cable delivers exceptional EMI/RFI protection and signal integrity in demanding environments. Engineered with premium materials and robust construction, it ensures reliable data transmission for critical applications.

Technical Specifications

Parameter Specification
Conductor
Material Tinned Copper (TC)
Structure 65 strands × 0.08mm
Gauge 22 AWG
Insulation
Material Silicone Rubber (Teflon® optional)
Color Options White, Black
Shielding
Braid Material Tinned Copper
Braid Structure 144±3 strands × 0.08mm
Coverage ≥95%
Inner Wrap PTFE Tape
Jacket
Material Silicone Rubber
Outer Diameter (OD) Ø5.0mm ± 0.10mm
Color Black

2 Core 22 AWG Braided Shield Silicone Cable | Medical Grade Single Pair Shielded Twisted Pair

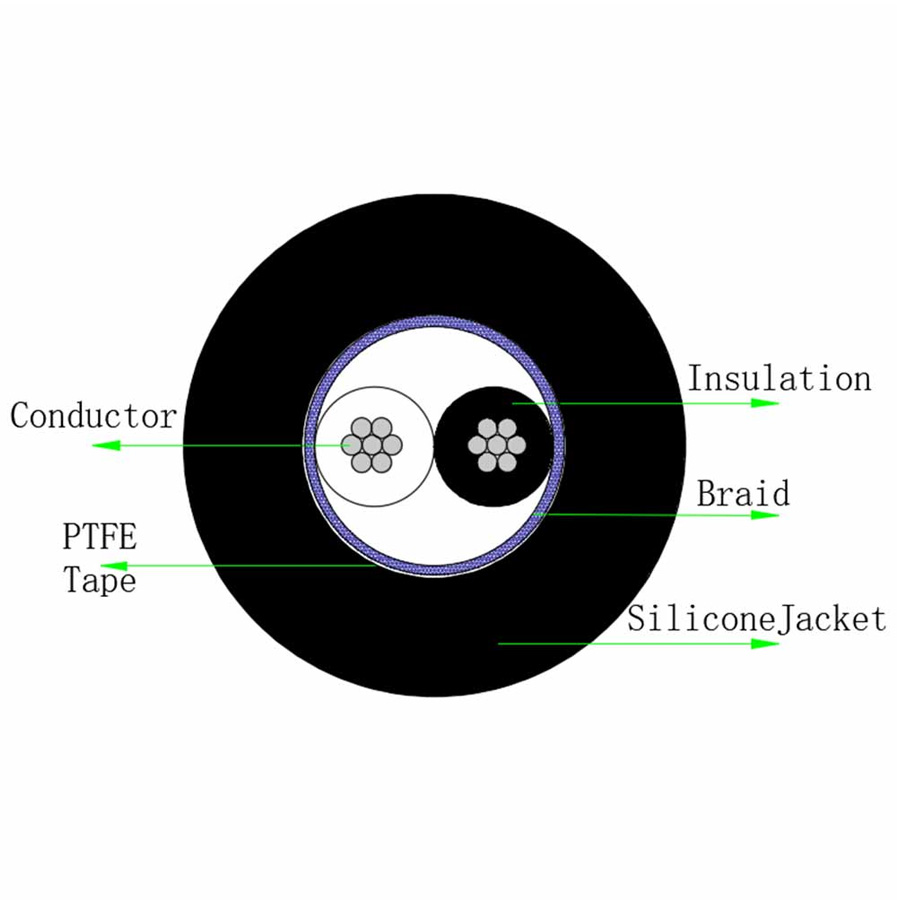

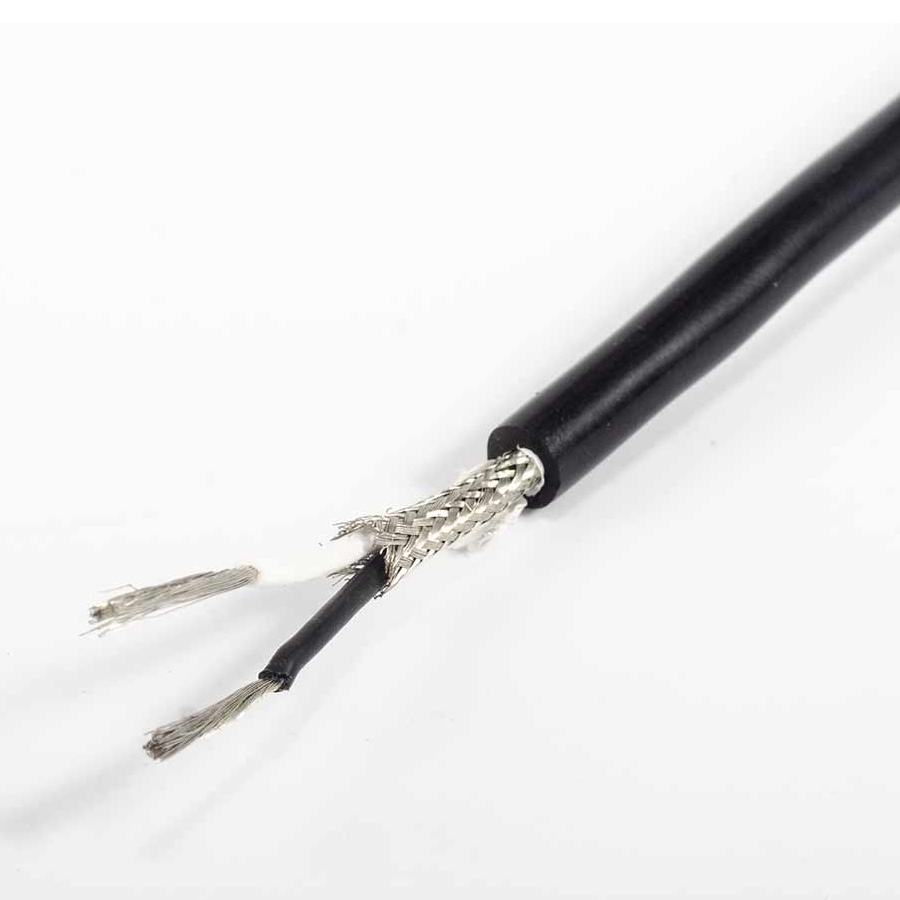

Construction & Key Features

  1. Twisted Pair Core:

    • Two 22 AWG conductors diagonally twisted to reduce crosstalk and EMI susceptibility.

  2. EMI Shielding System:

    • High-density (≥95%) tinned copper braid for superior electromagnetic interference suppression.

    • PTFE tape underlay prevents shield contact with conductors.

  3. Medical-Grade Silicone:

    • Insulation & Jacket: Silicone rubber ensures extreme flexibility, softness, and biocompatibility.

    • Operating Temp: -60°C to +200°C (continuous).

    • Advantages: Non-toxic, ozone-resistant, flame-retardant (complies with UL/CSA/IEC standards).

Performance Advantages

  • Optimal Signal Integrity: Twisted pair + braided shield minimizes signal distortion in noisy environments.

  • Durability: Resists chemicals, moisture, and repeated flexing. Ideal for dynamic applications.

  • Safety Compliance: Suitable for medical devices per ISO 13485, IEC 60601-1.

Application Scenarios

  • Medical Equipment: Patient monitors, diagnostic devices, surgical tools, imaging systems.

  • Test & Measurement: Sensitive instrumentation, data acquisition systems, sensor wiring.

  • Industrial Automation: Robotics, servo motors, encoders in high-EMI environments.

  • Aerospace & Defense: Avionics, mission-critical communication systems.

Engineering Selection Notes

  • Flex Life: Silicone construction outperforms Teflon® in repeated bending applications.

  • EMI Criticality: Specify for environments with motors, VFDs, or wireless transmitters.

  • Variants Available: 3-core and 10-core shielded silicone cables (in stock).
