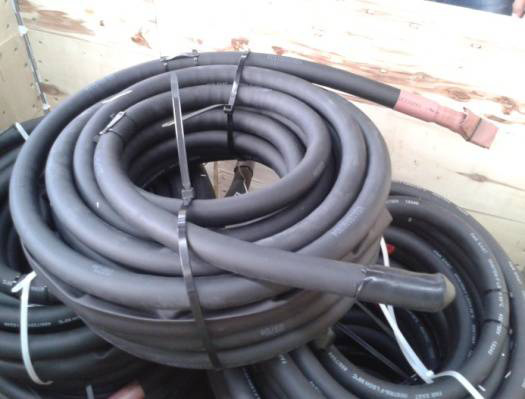

Product Overview
Application:
Engineered for dynamic torsion applications in wind turbines, these 0.6/1kV multi-core power cables transmit energy from generators to transformers. They withstand continuous twisting stresses in free-hanging vertical installations within turbine towers, ensuring reliability in onshore/offshore wind farms.
Compliance:
Manufactured to IEC 60502 standards for low-voltage power distribution in renewable energy systems.
Construction & Material Properties
| Layer | Specification | Key Characteristics |
|---|---|---|
| Conductor | Tinned copper, Class 5/6 stranded (IEC 60228) | High flexibility, corrosion resistance. |
| Cross Section | 25–120 mm² | Optimized for 3-4 core configurations. |
| Insulation | EPR or HF-XLPE (Halogen-Free XLPE) | EPR: Thermal resilience (–40°C to +90°C). HF-XLPE: Enhanced dielectric strength, low smoke. |
| Sheath | HF XL EVA (Halogen-Free XL Ethylene Vinyl Acetate) | Flame-retardant, zero toxic halogens, abrasion-resistant. |
Technical Data
| Parameter | Value |
|---|---|
| Rated Voltage (Uo/U) | 0.6/1 kV |
| Test Voltage | 3.5 kV (AC, 5 min) |
| Operating Temperature | –40°C to +90°C |
| Torsional Endurance | ±2,000 cycles @ ±144º/m, –40°C (No cracking) |
| Min. Bending Radius | 6 × Cable Diameter |
Product Specifications
For engineering selection and installation planning:
| Core Config. × mm² | Outer Diameter (mm) | Total Weight (kg/km) |
|---|---|---|
| 3-core | ||
| 3×25 | 27.5 | 1500 |
| 3×35 | 31.1 | 1960 |
| 3×50 | 36.1 | 2640 |
| 3×70 | 40.5 | 3150 |
| 3×95 | 46.5 | 4575 |
| 3×120 | 50.5 | 5490 |
| 4-core | ||
| 4×25 | 30.5 | 1870 |
| 4×35 | 34.6 | 2320 |
| 4×50 | 39.1 | 3100 |
| 4×70 | 43.5 | 4240 |
| 4×95 | 51.5 | 5716 |
| 4×120 | 56.1 | 6950 |
Key Engineering Features
-
Dynamic Torsion Performance:
Passes ±2,000 torsion cycles at –40°C without cracking – critical for Arctic wind farms. -
Dual Insulation Options:
EPR: Superior elasticity for repetitive motion.
HF-XLPE: Higher dielectric strength for compact designs. -
Halogen-Free Safety:
Sheath emits zero toxic fumes during combustion (compliant with IEC 60754). -
Space-Efficient Installation:
Minimal bending radius (6× diameter) suits confined tower routing.
Application Scenarios
-
Turbine Generator Connections: Nacelle-to-tower base power transmission.
-
Pitch/Yaw Systems: Continuous torsion zones in blade control mechanisms.
-
Offshore Wind Farms: Corrosion-resistant performance in high-humidity environments.
