Product Overview:
The ACWU90 armored aluminum cable is a high-performance power transmission solution engineered to operate reliably in demanding environments. Certified to CSA C22.2 No. 51-20, it features interlocked aluminum armor, RW90-rated XLPE insulation, and a UV-resistant PVC jacket. This multi-conductor cable offers exceptional durability, flexibility, and safety, making it suitable for a wide range of industrial, commercial, and utility applications.
Key Applications
-
Outdoor and Weather-Exposed Wiring: Resists moisture, UV radiation, and extreme temperatures from -40°C to 90°C.
-
Cable Trays and Direct Burial: Approved for use in ventilated, non-ventilated, and ladder-type trays, as well as for direct burial or embedding in concrete.
-
Critical Infrastructure: Ideal for service entrances, renewable energy systems, wastewater treatment plants, and hazardous locations.
-
Cost-Efficient Power Distribution: Aluminum conductors provide significant weight and cost savings compared to copper, while maintaining high performance.
Technical Specifications
| Feature | Specification |
|---|---|
| Voltage Rating | 600V or 1000V (select during ordering) |

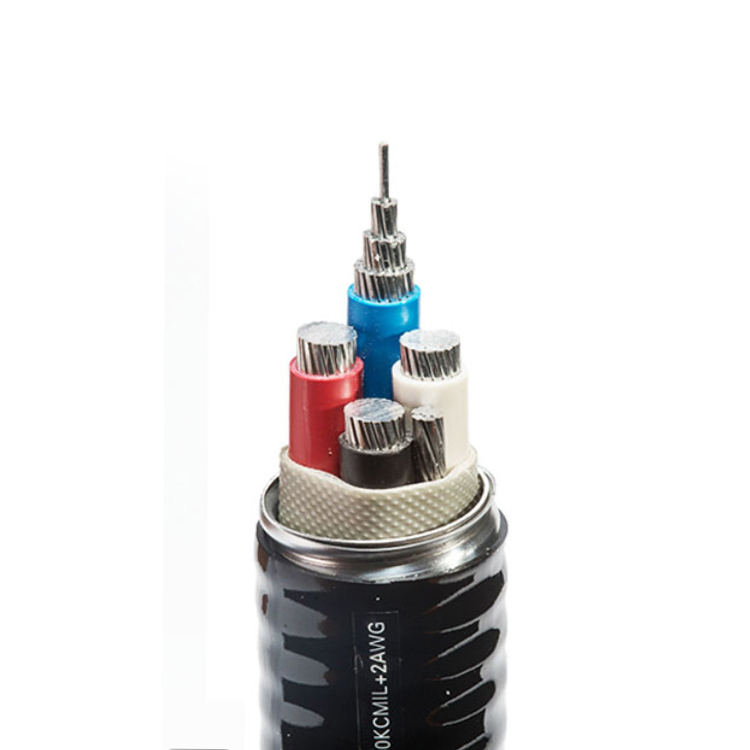

| Conductor | 3 or 4 compact 8000 Series ACM aluminum cores + bare aluminum bonding wire |
| Insulation | RW90-rated cross-linked polyethylene (XLPE), 90°C thermal stability |
| Armor | Interlocked aluminum for crush resistance, EMI shielding, and mechanical protection |
| Jacket | UV-resistant PVC for abrasion, corrosion, and weather protection |
| Flame Rating | FT4 flame-retardant compliant |
| Temperature Range | -40°C to 90°C (-40°F to 194°F) |
| Color Coding | 3-core: Black, Red, White; 4-core: Black, Red, Blue, White |
Key Advantages
-
Robust Mechanical Protection:
The interlocked aluminum armor offers superior resistance to impact, crushing, and corrosive elements, while providing effective EMI shielding.
The durable PVC jacket enhances longevity with proven resistance to abrasion, moisture, and UV exposure. -
Enhanced Safety and Regulatory Compliance:
Meets FT4 flame-retardancy requirements, reducing fire risks in diverse operating environments.
CSA-certified for use in wet, dry, and directly buried applications, ensuring full compliance with Canadian safety standards. -
Installation Versatility and Ease:
Lightweight aluminum construction simplifies transport, handling, and installation in restricted or complex routing scenarios.
Approved for use in cable trays, conduits, direct burial, and exposed applications. -
Economic Efficiency:
Aluminum conductors deliver equivalent electrical performance to copper at reduced weight (up to 50% lighter) and significantly lower material costs.
Standards & Certifications
-
Complies with CSA C22.2 No. 51-20 for metal-clad cables.
-
RW90 insulation rating ensures reliable performance at temperatures up to 90°C.
