Product Description

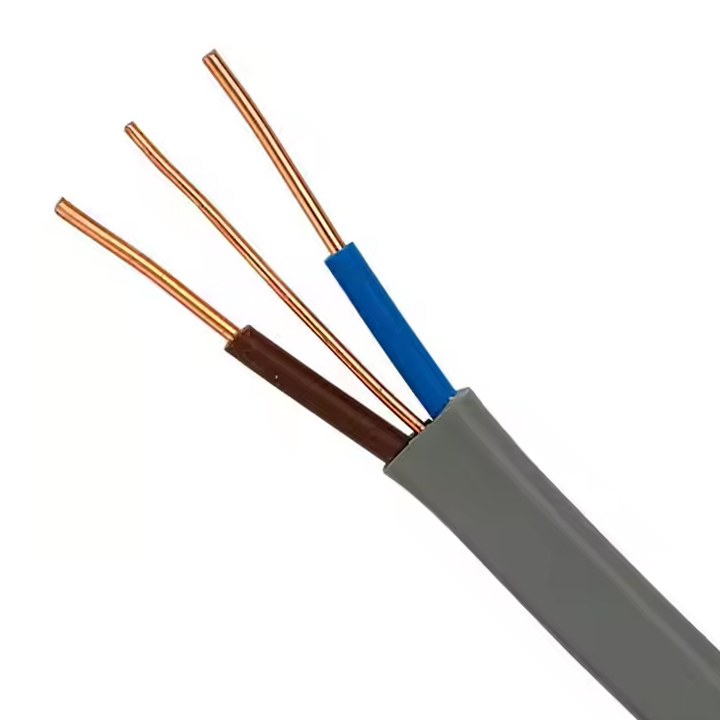

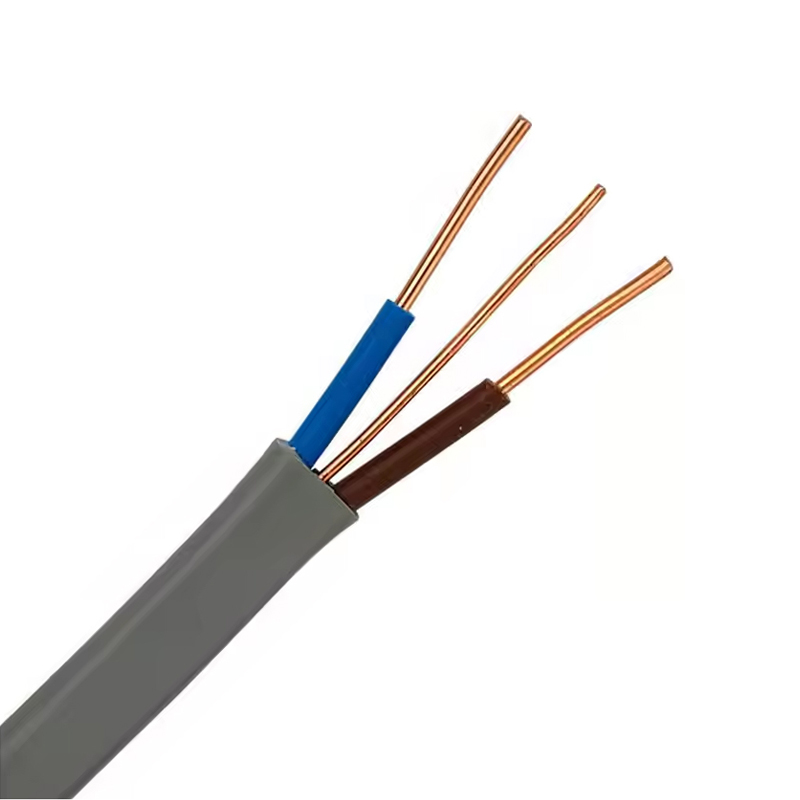

2.5mm² PVC Solid Copper House Wiring Cable - Twin & Earth Flat Cable
Model: 6242Y Electric Wire
Certification: CE Certified PVC Insulated Flat Cable
Material: Copper Conductor / PVC Insulation
2.5mm² PVC Solid Copper House Wiring Cable - Twin & Earth Flat Cable | CE Certified
Product Features
- Voltage Rating: 300/500V, 450/750V
- Standards: IEC 60227
- Certifications: ISO9001, CCC, CE, SABS
- Applications: Electrical equipment, household appliances, and electronic devices
Cable Type
- Conductor: Solid or Stranded Copper
- Insulation & Sheath: PVC Insulation + PVC Sheath
- Structure: Twin Core or Three Core Flat Cable
Operating Conditions
- Long-term Operating Temperature: ≤ 70°C
Technical Specifications
Flat Cable Specifications
| Cores & Cross-Section (mm²) | Conductor Structure (Main Core) (mm) | Earth Core Structure (mm) | Avg. Insulation Thickness (mm) | Avg. Sheath Thickness (mm) | Approx. Overall Diameter (mm) |
|---|---|---|---|---|---|
| 2x1.0+E | 1x1.13 | 1x0.85 | 0.60 | 0.90 | 4.1x7.3 |
| 2x1.5+E | 1x1.38 | 1x1.13 | 0.70 | 0.90 | 4.6x8.5 |
| 2x2.5+E | 1x1.78 | 1x1.38 | 0.80 | 1.00 | 5.4x10.1 |
| 2x4.0+E | 1x2.25 | 1x1.78 | 0.80 | 1.00 | 5.9x11.5 |
| 2x6.0+E | 1x2.76 | 1x1.78 | 0.80 | 1.10 | 6.6x12.7 |
Product Advantages
- High-Quality Materials: Solid copper conductor + PVC insulation for durability and safety.
- Wide Applications: Suitable for household, office, and industrial electrical wiring.
- Comprehensive Certifications: CE, ISO9001, and more, ensuring reliable quality.
