V75 PVC Ordinary Duty Flexible Cord 250/400V , 75°C – AS/NZS 3191

Low Voltage Power Cables
Description

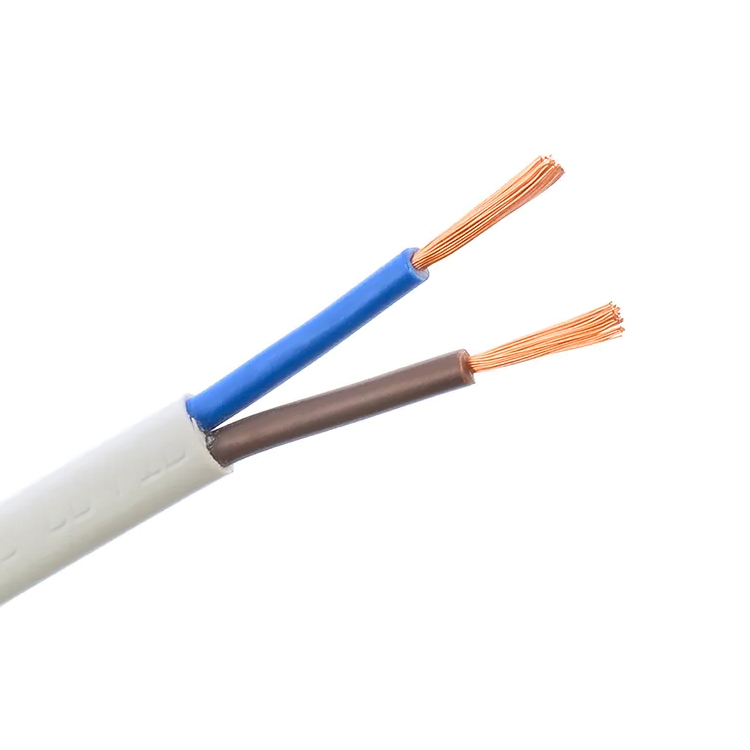

V75 PVC Ordinary Duty Flexible Cord, 250/400V

Product Overview

The V75 PVC Ordinary Duty Flexible Cord is a 250/400V low voltage flexible cord designed for installation in dry applications only, in conduit or enclosures, such as switchboards, control panels, appliances, and electrical equipment such as radios, desk lamps, and office machines. It is also used for extension leads in sizes 1 mm² and above.

Multicore cords containing an E core are suitable for a number of applications in dry and damp conditions, such as domestic appliances (washing machines, dishwashers), and leads for industrial and office equipment requiring a three-phase supply and an earth connection. The cord features an annealed copper conductor to AS/NZS 1125, V-75 PVC insulation, and a 4V-75 PVC sheath, with a maximum continuous operating temperature of 75°C. It is manufactured to AS/NZS 3191 and AS/NZS 1125.

Features & Benefits

  • Ordinary Duty Flexible Cord: Designed for dry applications and conduit or enclosure installation.

  • Voltage Rating: 250/400V.

  • Operating Temperature: Maximum continuous operating temperature of 75°C.

  • Annealed Copper Conductor: Manufactured to AS/NZS 1125.

  • V-75 PVC Insulation: Standard V-75 PVC insulation.

  • 4V-75 PVC Sheath: Durable 4V-75 PVC outer sheath.

  • Earth Connection Ready: Multicore cords with E core for earth connection.

  • Versatile Applications: Suitable for switchboards, control panels, appliances, and extension leads.

  • Standard Compliant: AS/NZS 3191, AS/NZS 1125.

  • Sheath Colour Options: Grey, White, Black, Orange.

Typical Applications

  • Switchboards and control panels

  • Appliances and electrical equipment such as radios, desk lamps, and office machines

  • Extension leads in sizes 1 mm² and above

  • Domestic appliances (washing machines, dishwashers) with E core

  • Industrial and office equipment requiring a three-phase supply and earth connection

Note: Suitable for installation in dry applications only, in conduit or enclosures.

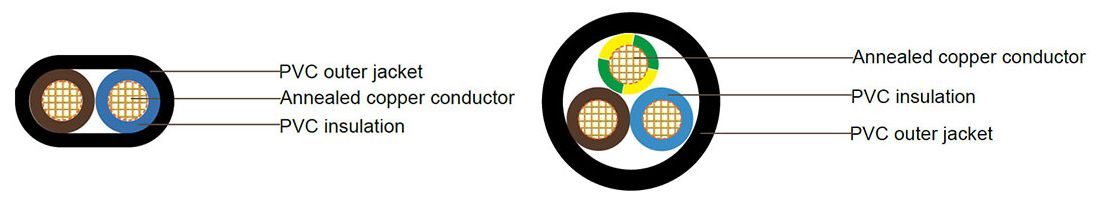

Construction

  • Conductor: Annealed copper conductor to AS/NZS 1125

  • Maximum Continuous Operating Temperature: 75°C

  • Insulation: V-75 PVC

  • Insulation Colours:

    • 1C: Red, White, Light Blue, Black

    • 2C: Brown, Light Blue

    • 3C: Brown, Light Blue, Green/Yellow

    • 4C: Brown, Light Blue, White, Green/Yellow

    • 5C: Brown, Light Blue, Orange, White, Green/Yellow

  • Sheath: 4V-75 PVC

  • Sheath Colour: Grey, White, Black, Orange

Technical Specifications

Technical Characteristics

Conductor Size (mm²) Current Carrying Capacity (A) Max. DC Resistance (Ohm/km @ 20°C) Max. AC Resistance (Ohm/km @ 90°C) Single Phase Voltage Drop (mV/A.m)
0.5 3 39.0 47.4 94.7
0.75 7.5 26.0 31.6 63.2
1.0 10 19.5 23.7 47.5
1.5 16 13.3 16.2 32.3
2.5 20 7.98 9.70 19.4
4.0 25 4.95 6.02 12.0

Cable Parameter – Single Core Round

Conductor Size (mm²) No. of Cores Nominal Insulation Thickness (mm) Nominal Sheath Thickness (mm) Nominal O.D. (mm) Approx. Cable Weight (kg/100m)
0.5 1 0.6 – 2.2 0.9
0.75 1 0.6 – 2.4 1.2
1.0 1 0.6 – 2.5 1.5
1.5 1 0.7 – 3.0 2.1
2.5 1 0.8 – 3.7 3.4
4 1 0.8 – 4.2 4.8

Cable Parameter – Multi Cores Round

Conductor Size (mm²) No. of Cores Nominal Insulation Thickness (mm) Nominal Sheath Thickness (mm) Nominal O.D. (mm) Approx. Cable Weight (kg/100m)
0.75 2 0.6 0.8 6.4 5.7
1.0 2 0.6 0.8 6.7 6.5
1.5 2 0.7 0.8 7.7 8.9
2.5 2 0.8 1.0 9.4 14
4 2 0.8 1.0 10.5 18
0.75 3 0.6 0.8 6.8 6.8
1.0 3 0.6 0.8 7.1 7.9
1.5 3 0.7 0.9 8.4 11
2.5 3 0.8 1.1 10.2 17
4 3 0.8 1.1 11.4 23
0.75 4 0.6 0.8 7.4 8.2
1.0 4 0.6 0.9 8.0 9.9
1.5 4 0.7 1.0 9.4 14
2.5 4 0.8 1.1 11.2 21
4 4 0.8 1.1 12.5 29
0.75 5 0.6 0.9 8.3 10
1.0 5 0.6 0.9 8.7 12
1.5 5 0.7 1.1 10.5 17
2.5 5 0.8 1.2 12.4 26
4 5 0.8 1.3 14.1 36

Cable Parameter – Flat

Conductor Size (mm²) No. of Cores Nominal Insulation Thickness (mm) Nominal Sheath Thickness (mm) Nominal O.D. (mm) Approx. Cable Weight (kg/100m)
0.5 2 0.6 0.8 6.0 × 3.9 3.6
0.75 2 0.6 0.8 6.4 × 4.1 4.3

Note: All values are nominal as provided in the source specification. Actual dimensions and weights may vary within standard manufacturing tolerances.

Standards & Compliance

  • AS/NZS 3191

  • AS/NZS 1125

Ordering Information

To request a quote or place an order, please provide the following information:

  • Product Type: V75 PVC Ordinary Duty Flexible Cord

  • Voltage Rating: 250/400V

  • Type: Single Core Round, Multi Cores Round, or Flat

  • Conductor Size: e.g., 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm², 4.0 mm²

  • Number of Cores: 1, 2, 3, 4, or 5 as applicable

  • Sheath Colour: Grey, White, Black, Orange

  • Quantity: Total length in meters
