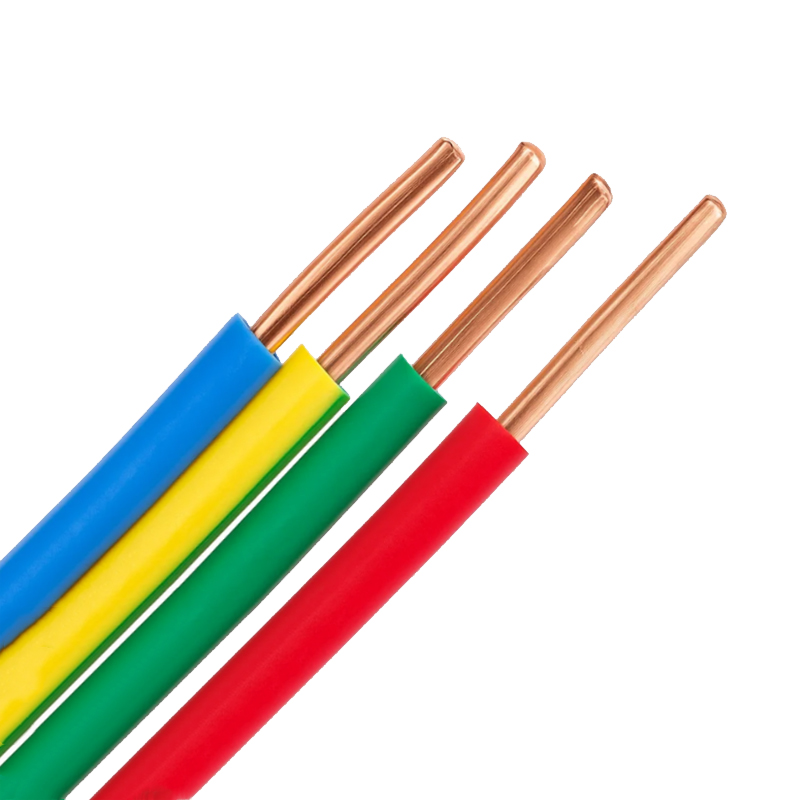

German Standard Industrial Cable H05V2-U / H07V2-U
Product Overview
The H05V2-U and H07V2-U are German standard industrial cables designed for fixed protected installation inside appliances and in, or on, lighting fittings. They are suitable for installation in surface mounted or embedded conduits, and only for signalling and control circuits.
The maximum conductor temperature in normal use is 90°C. The cables must not be used in contact with objects higher than 85°C and are not suitable for fixed distribution systems. They are manufactured to <HAR> HD 21.7 S2, VDE-0281 Part-7, CEI20-20/7, and comply with the CE Low Voltage Directive 73/23/EEC and 93/68/EEC. They are also ROHS compliant.
Key Features & Benefits
-
90°C Conductor Temperature: Suitable for normal use up to 90°C.
-
PVC TI3 Insulation: Special PVC TI3 core insulation.
-
Solid Bare Copper: Solid bare copper single wire conductor.
-
Flame Retardant: Complies with IEC 60332.1.
-
Voltage Ratings: 300/500V (H05V2-U); 450/750V (H07V2-U).
-
Test Voltage: 2000V (H05V2-U); 2500V (H07V2-U).
-
Insulation Resistance: 10 MΩ x km.
-
Short Circuit Temperature: +160°C.
-
ROHS Compliant: Meets environmental and health requirements.
-
Standard Compliant: <HAR> HD 21.7 S2, VDE-0281 Part-7, CEI20-20/7.
Typical Applications
-
Fixed protected installation inside appliances
-
In or on lighting fittings
-
Surface mounted or embedded conduits
-
Signalling and control circuits
Limitations: Not for use in contact with objects higher than 85°C. Not suitable for fixed distribution systems.

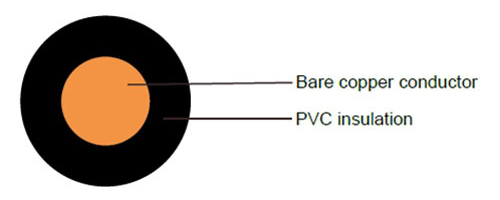

Construction Details
-
Conductor: Solid bare copper single wire
-
Conductor Standard: Solid to DIN VDE 0281-3, HD 21.3 S3 and IEC 60227-3
-
Insulation: Special PVC TI3 core insulation
-
Core Colours: Cores to VDE-0293 colours on chart
-
Type Range: H05V2-U (20, 18 & 17 AWG); H07V2-U (16 AWG and larger)
Technical Specifications
Electrical & Thermal Characteristics
| Parameter | H05V2-U | H07V2-U |
|---|---|---|
| Working Voltage | 300/500V (H05V-U) | 450/750V (H07V-U) |
| Test Voltage | 2000V | 2500V |
| Flexing Bending Radius | 15 x Ø | 15 x Ø |
| Static Bending Radius | 15 x Ø | 15 x Ø |
| Flexing Temperature | -5°C to +70°C | -5°C to +70°C |
| Static Temperature | -30°C to +80°C | -30°C to +80°C |
| Short Circuit Temperature | +160°C | +160°C |
| Flame Retardant | IEC 60332.1 | IEC 60332.1 |
| Insulation Resistance | 10 MΩ x km | 10 MΩ x km |
Note: Working voltage references H05V-U and H07V-U as indicated in the source specification. H05V2-U and H07V2-U are the 90°C versions.
Parameter Table – H05V2-U / H07V2-U
| AWG | No. of Cores x Nominal Cross Sectional Area (mm²) | Nominal Thickness of Insulation (mm) | Nominal Overall Diameter (mm) | Nominal Copper Weight (kg/km) | Nominal Weight (kg/km) |
|---|---|---|---|---|---|
| 20 | 1 x 0.5 | 0.6 | 2.1 | 4.8 | 9 |
| 18 | 1 x 0.75 | 0.6 | 2.2 | 7.2 | 11 |
| 17 | 1 x 1 | 0.6 | 2.4 | 9.6 | 14 |
| 16 | 1 x 1.5 | 0.7 | 2.9 | 14.4 | 21 |
| 14 | 1 x 2.5 | 0.8 | 3.5 | 24.0 | 33 |
| 12 | 1 x 4 | 0.8 | 3.9 | 38.0 | 49 |
| 10 | 1 x 6 | 0.8 | 4.5 | 58.0 | 69 |
| 8 | 1 x 10 | 1.0 | 5.7 | 96.0 | 115 |
Note: All values are nominal as provided in the source specification. Actual dimensions and weights may vary within standard manufacturing tolerances.
Standards & Compliance
-
<HAR> HD 21.7 S2
-
VDE-0281 Part-7
-
CEI20-20/7
-
CE Low Voltage Directive 73/23/EEC and 93/68/EEC
-
ROHS Compliant
-
Flame Retardant: IEC 60332.1
Ordering Information
To request a quote or place an order, please provide the following information:
-
Product Type: H05V2-U or H07V2-U
-
Voltage Rating: 300/500V or 450/750V
-
Conductor Size: e.g., 1 x 0.5 mm², 1 x 1.5 mm², 1 x 10 mm²
-
Conductor: Solid bare copper
-
Insulation: Special PVC TI3
-
Quantity: Total length in meters
