A-DQ(ZN)B2Y Optical Cable with Central Loose Tube | Outdoor LLDPE Sheathed, Anti‑Rodent – IEC 60794-3

Communication Cables
Description

Product Overview

Optical cable with central loose tube for outdoor application, with reinforcement and anti‑rodent protection. The cable provides reliable fiber transmission in harsh environmental conditions, with high tensile strength and pressure resistance.

Approvals:

  • ISO/IEC 11801

  • IEC 60794-3

  • EN 50173-1

Technical Data:

  • Temperature range:

    • During installation: -15°C up to +40°C

    • Fixed installed: -30°C up to +60°C

  • Minimum inner bending radius: 4D

  • Tensile strength at installation: 1500 N (several hours)

  • Short-term tensile strength: 1500 N (several days)

  • Constant tensile strength: 750 N

  • Resistance to pressure: 200 N / 100 mm

Specifications

Property Details
Voltage Level Low Voltage
Application Outdoor (duct, direct burial, aerial)
Reinforcement Glass fibers or aramid threads
Anti‑rodent protection Yes (glass fibers/aramid)
Sheath Material LLDPE (linear low‑density polyethylene)

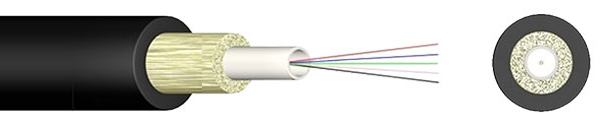

Construction

  1. Fiber: 2–24 fibers (diameter 250 μm) with coloured primary coating

  2. Loose tube: Elastomer, jelly‑filled. Diameter 2.8 mm for 2–16 fibers; 3.5 mm for 24 fibers. Loose laid fibers within tube.

  3. Supporting element and anti‑rodent protection: Glass fibers or aramid threads, filled area around tube

  4. Watertight element: Swelling tape

  5. Sheath: LLDPE (linear low‑density polyethylene), thickness 1.2 mm

Technical Parameters – Datasheet

Fiber Count (n) Overall Diameter (mm) Weight (kg/km) Bending Radius Under Load (mm) Bending Radius Without Load (mm)
2–16 6.5 40 100 60
24 7.0 45 100 60
