Type RIT-(N)TMCGETMPU 6/10 kV Round Mining Trailing Cable: Engineering Robust Power Distribution for Heavy-Duty Mining Applications

1. Introduction

In the demanding landscape of modern mining operations, the continuity of power distribution directly correlates with productivity and safety. Mobile heavy machinery—such as electric shovels, blast-hole drills, continuous miners, and draglines—requires a power supply solution that is not only robust enough to withstand extreme mechanical stress but also flexible enough for continuous movement.

The Type RIT-(N)TMCGETMPU 6/10 kV Round Mining Trailing Cable is a precision-engineered solution designed to meet these challenges. Conforming to rigorous international and German VDE standards, this cable delivers a critical balance of lightweight maneuverability and exceptional durability, ensuring reliable power transmission in both surface and underground mining environments.

Reference Product

2. Product Nomenclature: Decoding the Engineering

The designation "RIT-(N)TMCGETMPU" provides a concise blueprint of the cable's design philosophy and material composition:

• RIT: Rubber Insulated Trailing. Signifies the cable's primary function: flexible trailing service where it must move in tandem with connected equipment.

• (N): German Norm. Certifies compliance with the stringent safety and performance benchmarks of German industrial standards (VDE).

• TMC: Thermoplastic Medium Voltage. Classifies the cable for medium-voltage power distribution networks, specifically rated for 6/10 kV applications.

• GE: Grounded Earth. Confirms the integration of dedicated grounding conductors, a critical safety feature for mitigating electrical hazards.

• TMPU: Thermoplastic Polyurethane. Identifies the outer sheath material, chosen for its superior mechanical and chemical resistance.

3. Standards and Certifications

The cable is manufactured to comply with the highest global standards, guaranteeing performance integrity in critical infrastructure:

• Design & Testing: Based on IEC 60502 (Power cables with extruded insulation) and IEC 60228 (Conductors of insulated cables).

• Performance: Meets the requirements of VDE 0250 Part 813, the authoritative German standard for insulated power cables and flexible cords.

• Conductor Classification: Class 5 flexible, finely stranded tinned copper per IEC 60228, ensuring optimal flexibility and resistance to breakage under repeated bending.

4. Key Performance Characteristics

Engineered for extreme operational demands, the cable exhibits the following technical characteristics:

• Mechanical Robustness: Superior resistance to impact, abrasion, and tear, facilitated by the rugged TPU sheath.

• Environmental Resilience: Highly resistant to ozone, UV radiation, weathering, and moisture.

• Chemical Resistance: Formulated to withstand exposure to industrial oils, greases, and hydrocarbons.

• Thermal Performance:

  • Maximum Continuous Conductor Temperature: 90°C

  • Maximum Short-Circuit Temperature: 200°C

• Operational Flexibility: Maintains excellent flexibility and remains functional in ambient temperatures as low as -30°C.

5. Construction Details

The cable's layered construction is designed to ensure electrical integrity while providing maximum protection against mechanical damage:

1. Conductor: Finely stranded tinned copper (Class 5). The tinning provides corrosion resistance and enhances longevity.

2. Conductor Screen: An extruded semi-conducting layer ensures a smooth electrical field and prevents partial discharge activity.

3. Insulation: A specialized thermosetting Ethylene-Propylene Rubber (EPR), offering electrical properties and thermal stability exceeding the requirements of Type 3GI3 per DIN VDE 0207.

4. Insulation Screen: A strippable semi-conducting layer facilitates safe and efficient termination and splicing.

5. Ground Check Conductor: Annealed tinned copper with a yellow Polypropylene insulation, used for monitoring the continuity of the grounding circuit.

6. Grounding Conductors: Finely stranded tinned copper conductors, designed to carry fault current safely to earth.

7. Core Assembly: The three power cores, two grounding conductors, and one ground check conductor are cabled together with suitable fillers to maintain a circular cross-section. A semi-conducting binder tape is applied overall.

8. Inner Layer: An integral filled jacket is applied to enhance torsion resistance, a critical feature for reeling applications.

9. Outer Sheath: A heavy-duty Thermoplastic Polyurethane (TPU) compound. This material is selected for its exceptional abrasion resistance, high tear strength, and resistance to oils and chemicals.

10. Jacket Color: Standard high-visibility yellow; other colors are available upon request.

6. Primary Applications

The Type RIT-(N)TMCGETMPU is the specified choice for portable power distribution in environments with high mechanical stress:

• Surface Mining: Primary power supply for electric mining shovels, draglines, blast-hole drills, and dredges.

• Underground Mining: Connection for continuous miners, cutting machines, loading equipment, and other track-mounted machinery.

• Industrial Sites: Suitable for quarries, large construction sites, and industrial facilities requiring temporary high-voltage power for mobile plant equipment.

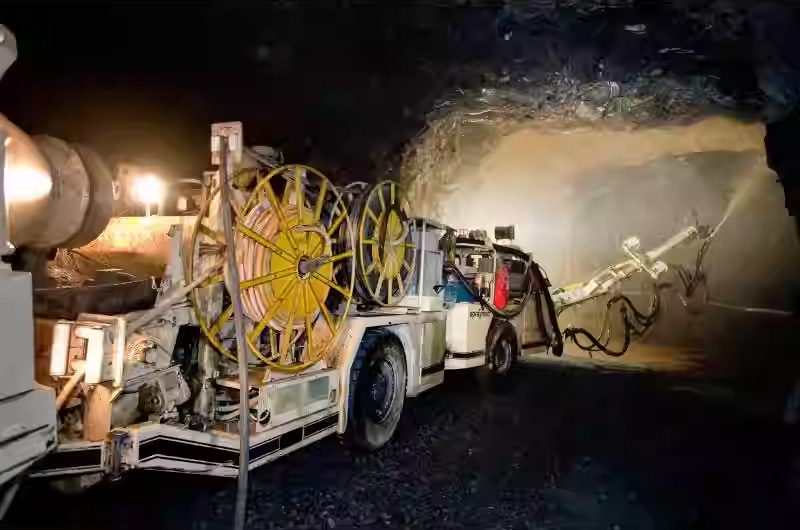

• Cable Reel Systems: Specifically designed for continuous reeling and unreeling applications where cables are subjected to high tensile and torsional stresses.

7. Conclusion

The Type RIT-(N)TMCGETMPU 6/10 kV Round Mining Trailing Cable represents a synthesis of advanced materials science and practical engineering. By integrating the electrical reliability of EPR insulation with the mechanical resilience of a TPU sheath, it delivers the durability required for heavy mining equipment without compromising on the flexibility needed for constant movement. Its adherence to VDE and IEC standards provides a verifiable guarantee of safety and performance, making it a dependable backbone for mobile power distribution networks.
