Type 2S Mining Cable – EPR Insulated, CPE Sheathed – AS/NZS 1802 Compliant

Mining Cables
Description

Product Overview

These Type 2S Mining Cables are designed for wiring of machines or interconnections between machinery and equipment where rubber cable characteristics are desired. They are also utilized for longwall lighting circuits and can be customized to incorporate pilot cores, control cores, twisted pairs, or screened cores depending on application requirements.

Application Scope:
These cables are suitable for use in distribution installations, electric power stations, and industrial systems. They are designed for fixed assembly in lines with unlimited difference levels, indoor installations, cable ducts, conduits and shafts, over shelves and grills, directly underground in trenches, and in outdoor shelters.

Specifications

Parameter Specification
Voltage Rating Low Voltage to Medium Voltage
Conductor Stranded tinned annealed copper
Insulation EPR (Ethylene Propylene Rubber)
Pilot/Control Cores Tinned copper wire with EPR insulation and composite screen (optional)
Individual Composite Screen (Earth Conductor) Tinned annealed copper braiding interwove with polyester yarn
Outer Sheath Heavy duty CPE (Chlorinated Polyethylene) Sheath

Key Features & Benefits

  • Flexible Rubber Cable Construction: Designed with rubber cable characteristics for applications requiring flexibility and durability.

  • Customizable Core Configuration: Can be manufactured with pilot cores, control cores, twisted pairs, or screened cores to meet specific circuit requirements.

  • EPR Insulation: Ethylene Propylene Rubber insulation provides excellent electrical properties and thermal stability.

  • Heavy Duty CPE Sheath: Chlorinated Polyethylene outer sheath offers robust protection against environmental exposure, abrasion, and industrial contaminants.

  • Tinned Copper Construction: Stranded tinned annealed copper conductors and screens provide corrosion resistance and reliable long-term performance.

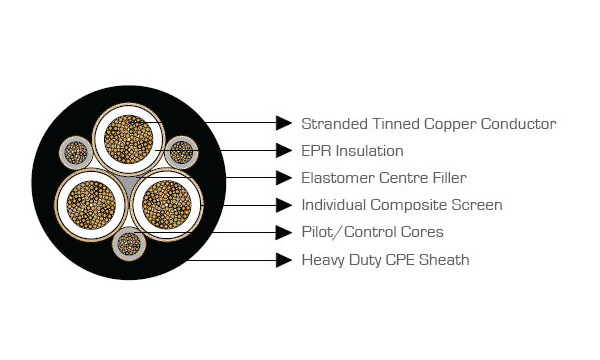

Construction Details

  1. Conductor: Stranded tinned annealed copper for flexibility and corrosion resistance.

  2. Insulation: EPR (Ethylene Propylene Rubber) - providing excellent dielectric properties and thermal endurance.

  3. Pilot/Control Cores (Optional): Tinned copper wire with EPR insulation, available with or without composite screening depending on signal integrity requirements.

  4. Individual Composite Screen (Earth Conductor): Tinned annealed copper braiding interwoven with polyester yarn, serving as both earth conductor and electrical screen.

  5. Optional Elements: May incorporate twisted pairs or additional screened cores for specialized control and communication functions.

  6. Outer Sheath: Heavy duty CPE (Chlorinated Polyethylene) sheath offering comprehensive protection against mechanical damage, moisture, chemicals, and UV exposure.

Typical Applications

  • Wiring of industrial machines and equipment where rubber cable characteristics are preferred

  • Interconnections between machinery and associated equipment

  • Longwall lighting circuits in underground mining operations

  • Control and monitoring circuits incorporating pilot or control cores

  • Distribution installations in electric power stations

  • Industrial system wiring for fixed installations

  • Indoor installations in cable ducts, conduits, shafts, shelves, and grills

  • Direct burial in trenches and outdoor shelter installations

Installation Environments

These cables are suitable for fixed installation in:

  • Lines with unlimited difference levels

  • Indoor industrial environments

  • Cable ducts, conduits, and cable shafts

  • Cable trays, shelves, and support grills

  • Direct underground burial in trenches

  • Outdoor shelters and protected exterior locations.
