Product Overview
The Type 409 series mining cable is primarily engineered as a flexible feeder cable for power supply to machinery and equipment in mining operations. It is specifically designed for trailing applications rather than continuous reeling. The series encompasses a wide range of sizes, with smaller cables utilized for drills, hand-held tools, and portable equipment, while larger configurations provide reliable power to heavy machinery including draglines, shovels, and large drills.
Standards
-
AS/NZS 2802:2000 – Electric cables – Reeling and trailing for mining and general use
-
AS/NZS 1125 – Conductors in insulated electric cables and flexible cords
-
AS/NZS 3808 – Insulating and sheathing materials for electric cables
-
AS/NZS 5000.1 – Electric cables – Polymeric insulated – For working voltages up to and including 0.6/1 (1.2) kV
Applications
-
Flexible feeder cable for power supply to mining machinery and equipment.
-
More suitable as a trailing cable rather than for reeling applications.
-
Smaller cables: Power supply for drills, hand-held tools, and portable equipment.
-
Larger cables: Power supply for draglines, shovels, and heavy drills.
-
Industrial applications requiring flexible, screened power cables.
Specifications
| Parameter | Details |
|---|---|
| Voltage Rating | 1.1 kV to 22 kV |
| Low Voltage | Yes (1.1 kV variants) |
| Medium Voltage | Yes (3.3 kV to 22 kV variants) |
| Conductor Type | Flexible stranded tinned annealed copper |
| Insulation | Ethylene Propylene Rubber (EPR) |
| Sheath | Heavy duty Polychloroprene (PCP) |
| Standards | AS/NZS 2802:2000, AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1 |
| Key Feature | Central extensible pilot, semi-conductive cradle |

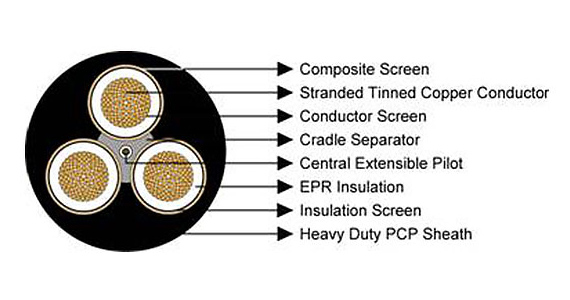

Construction
The Type 409 cable features a robust construction designed for durability and reliable performance in demanding mining environments.
| Component | Description |
|---|---|
| Conductors (3×) | Flexible stranded tinned annealed copper conductors. |
| Conductor Screen | – 1.1/1.1 kV: Polyester barrier tape. – 3.3/3.3 kV and above: Polyester barrier tape plus extruded semi-conductive tape. |
| Insulation | Ethylene Propylene Rubber (EPR). |
| Insulation Screen | Semi-conductive tape applied over insulation. |
| Composite Screen (Earth Conductor) | Tinned annealed copper braiding interwoven with polyester yarn, providing combined earthing and screening function. |
| Cradle Separator | Semi-conductive Polychloroprene (PCP) cradle that supports and separates the power cores. |
| Central Extensible Pilot (1×) | EPR-insulated flexible stranded tinned copper conductor positioned at the center for monitoring or control functions. |
| Sheath | Heavy duty Polychloroprene (PCP) sheath, providing excellent abrasion, oil, and weather resistance. |
Key Features
-
Trailing-Optimized Design: Specifically engineered for trailing applications rather than continuous reeling, ensuring reliable performance in mobile equipment operations.
-
Wide Application Range: Available in various sizes to suit everything from hand-held tools to heavy dragline machinery.
-
Central Monitoring: One central extensible pilot conductor enables continuous monitoring of cable integrity.
-
Voltage-Dependent Screening: Enhanced conductor screening for higher voltage ratings (3.3 kV and above) with additional extruded semi-conductive layer.
-
Composite Screening: Tinned copper braid interwoven with polyester yarn provides effective electrical shielding combined with mechanical strength.
-
Core Protection: Semi-conductive PCP cradle supports and protects power cores during operation.
-
Full Compliance: Manufactured and tested to AS/NZS 2802:2000 and related standards.
