Product Overview
The Type 455 series medium voltage mining cable is engineered for applications where minimal diameter and reduced mass are critical requirements. Designed with reduced insulation and sheath thickness and featuring a cradle-free construction, these cables are particularly suited for stacker-reclaimer operations and other mobile equipment where weight and space constraints are paramount. With two earth conductors and one pilot conductor (all same size) positioned in the outer interstices, this cable delivers reliable performance in both reeling and trailing applications while maintaining full compliance with Australian/New Zealand standards.
Standards
-
AS/NZS 2802:2000 – Electric cables – Reeling and trailing for mining and general use
-
AS/NZS 1125 – Conductors in insulated electric cables and flexible cords
-
AS/NZS 3808 – Insulating and sheathing materials for electric cables
-
AS/NZS 5000.1 – Electric cables – Polymeric insulated – For working voltages up to and including 0.6/1 (1.2) kV
Applications
-
Suitable for reeling and trailing applications where minimal diameter and mass is desired.
-
Particularly suited to stacker-reclaimer applications in mining and bulk handling operations.
-
Power supply to mobile mining equipment including draglines, shovels, and continuous miners.
-
Industrial applications requiring lightweight, flexible medium voltage cables.
Specifications
| Parameter | Details |
|---|---|
| Voltage Rating | 3.3 kV to 33 kV |
| Medium Voltage | Yes |
| Conductor Type | Flexible stranded tinned annealed copper |
| Insulation | Ethylene Propylene Rubber (EPR) |
| Sheath | Extra-heavy duty Polychloroprene (PCP) |
| Standards | AS/NZS 2802:2000, AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1 |
| Key Feature | Reduced insulation/sheath thickness, cradle-free design |

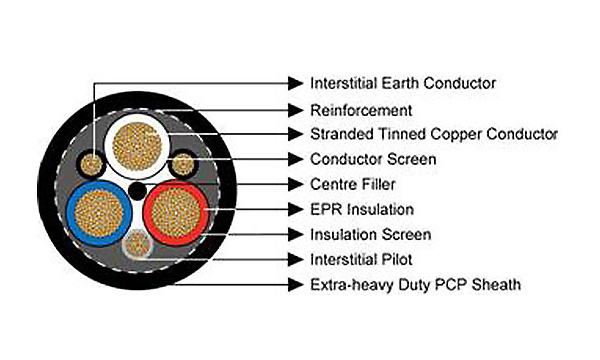

Construction
The Type 455 cable features an optimized construction designed to reduce diameter and mass while maintaining electrical integrity and mechanical strength.
| Component | Description |
|---|---|
| Conductors (3×) | Flexible stranded tinned annealed copper conductors. |
| Conductor Screen | Polyester barrier tape plus extruded semi-conductive tape. |
| Insulation | Ethylene Propylene Rubber (EPR) – reduced thickness design. |
| Insulation Screen | Semi-conductive tape applied over insulation. |
| Filler | Elastomer center filler to maintain circular form. |
| Interstitial Earth Conductors (2×) | CSP (Chlorosulfonated Polyethylene) insulated flexible stranded tinned copper conductors, positioned in outer interstices. |
| Interstitial Pilot (1×) | EPR-insulated flexible stranded tinned copper conductor, positioned in outer interstices (same size as earth conductors). |
| Textile Reinforcement | Open-weave braid reinforcement for mechanical strength. |
| Sheath | Extra-heavy duty Polychloroprene (PCP) sheath – reduced thickness design, providing excellent abrasion, oil, and weather resistance. |
Key Features
-
Optimized Diameter & Mass: Reduced insulation and sheath thickness with cradle-free construction minimizes overall cable dimensions and weight.
-
Stacker-Reclaimer Optimized: Particularly suited for applications where space and weight constraints are critical, such as stacker-reclaimer equipment.
-
Dual Application Capability: Suitable for both reeling and trailing operations.
-
Efficient Earth/Pilot Configuration: Two earth conductors and one pilot conductor (all same size) positioned in outer interstices for balanced construction.
-
Medium Voltage Rated: Available from 3.3 kV up to 33 kV to suit diverse equipment requirements.
-
Robust Protection: Extra-heavy duty PCP sheath with textile reinforcement ensures durability in harsh mining environments.
-
Full Compliance: Manufactured and tested to AS/NZS 2802:2000 and related standards.
