Product Overview
The Type 441 Class 2 mining cable is engineered for versatile performance in demanding mining environments, suitable for both trailing and reeling applications. Its distinctive construction features a semi-conductive cradle that supports and protects the power cores, significantly reducing the likelihood of damage from crushing and squashing during operation. With a central pilot conductor for monitoring and robust interstitial earth conductors, this cable provides reliable power distribution and safety in mobile mining equipment.
Standards
-
AS/NZS 2802:2000 – Electric cables – Reeling and trailing for mining and general use
-
AS/NZS 1125 – Conductors in insulated electric cables and flexible cords
-
AS/NZS 3808 – Insulating and sheathing materials for electric cables
-
AS/NZS 5000.1 – Electric cables – Polymeric insulated – For working voltages up to and including 0.6/1 (1.2) kV
Applications
-
Suitable for trailing applications (mobile equipment movement).
-
Suitable for reeling applications (cable reels and winders).
-
Power supply to mining machinery including draglines, shovels, continuous miners, and other heavy equipment.
-
Industrial applications requiring crush-resistant, flexible power cables.
Specifications
| Parameter | Details |
|---|---|
| Voltage Rating | 1.1/1.1 kV |
| Low Voltage | Yes |
| Conductor Type | Flexible stranded tinned annealed copper (Class 2) |
| Insulation | Ethylene Propylene Rubber (EPR) |
| Sheath | Heavy duty Polychloroprene (PCP) |
| Standards | AS/NZS 2802:2000, AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1 |
| Key Feature | Semi-conductive cradle for crush/squash protection |

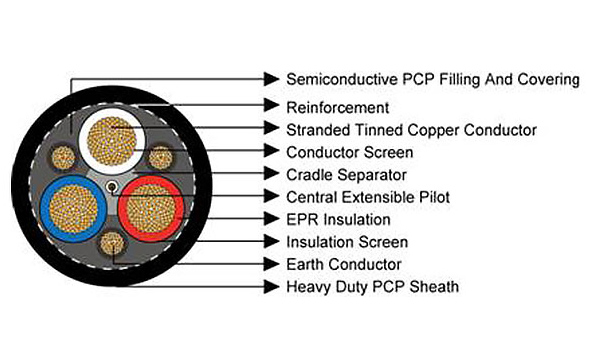

Construction
The Type 441 Class 2 cable features a comprehensive multi-layer construction designed for maximum durability and safety in mining operations.
| Component | Description |
|---|---|
| Conductors (3×) | Flexible stranded tinned annealed copper conductors (Class 2). |
| Conductor Screen | Polyester barrier tape applied over each conductor. |
| Insulation | Ethylene Propylene Rubber (EPR). |
| Insulation Screen | Semi-conductive tape applied over insulation. |
| Cradle Separator | Semi-conductive Polychloroprene (PCP) profiled cradle that separates and cushions the power cores. |
| Overall Core Screen | Semi-conductive PCP filling and covering over the assembled cores. |
| Interstitial Earth Conductors (3×) | Semi-conductive PCP insulated flexible stranded tinned copper conductors, positioned in the interstices between power cores. |
| Central Extensible Pilot (1×) | EPR-insulated flexible stranded tinned copper conductor for monitoring or control functions. |
| Textile Reinforcement | Open-weave braid reinforcement for mechanical strength. |
| Sheath | Heavy duty Polychloroprene (PCP) sheath, providing excellent abrasion, oil, and weather resistance. |
Key Features
-
Dual Application Capability: Suitable for both trailing and reeling operations, offering maximum flexibility in deployment.
-
Crush-Resistant Design: The semi-conductive PCP cradle supports and protects power cores, minimizing damage from crushing and squashing.
-
Comprehensive Screening: Multiple semi-conductive layers ensure electrical integrity and safety.
-
Integrated Monitoring: Central pilot conductor enables continuous monitoring of cable integrity.
-
Robust Earth System: Three interstitial earth conductors provide reliable grounding.
-
Heavy-Duty Protection: PCP sheath and textile reinforcement deliver exceptional mechanical strength.
-
Full Compliance: Manufactured and tested to AS/NZS 2802:2000 and related standards.
