Low Voltage Thermostat (LVT) Cable | Fire Alarm & HVAC Control Cable | CSA FT4 | 30V

CSA-Approved
Description

Product Overview

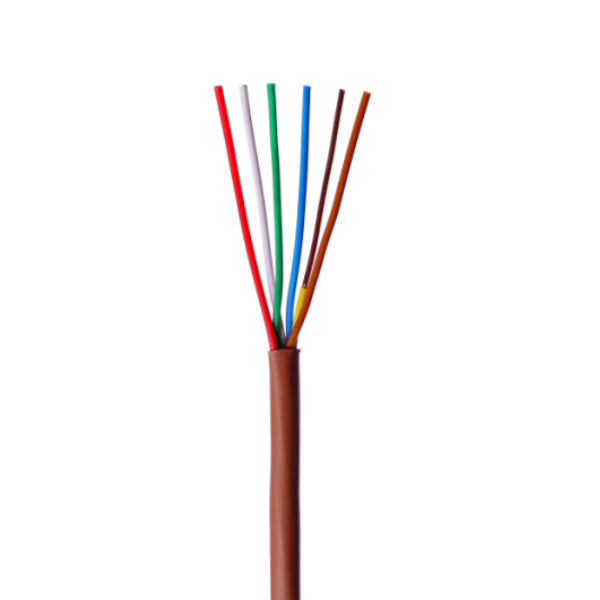

This Low Voltage Thermostat (LVT) Cable is a versatile control cable designed for extra-low-voltage signaling and control circuits. Certified to key CSA standards including FT4 flame resistance, it is approved for use in critical Fire Alarm Signaling (FAS) systems and everyday HVAC thermostat controls. Its durable construction and built-in installation features make it a reliable choice for both life safety and building automation applications in damp or dry locations.

Applications

This cable is suitable for connecting devices in a variety of low-voltage systems:

  • Fire & Life Safety: Devices within a Fire Alarm Protective Signaling System (FAS).

  • Building Controls: Thermostats and control wiring for heating, ventilation, and air conditioning (HVAC) systems.

  • General Low-Voltage Circuits: Doorbells, annunciators, intercoms, burglar alarms, and other systems where LVT 30V cable is specified.

  • Installation Environment: Approved for use in both damp and dry locations.

Key Features & Standards

  • Dual Application Rating: Suitable for both Fire Alarm (FAS) and general Low Voltage Thermostat (LVT) control circuits.

  • Stringent Safety Standards:

    • CSA C22.2 No. 35 for Extra-low-voltage control circuit cable (Type LVT).

    • CSA C22.2 No. 2556 FT4 / UL 1685 Vertical-Tray Flame Test rated.

    • IEEE 383 & 1202, ICEA T-30-520 (70,000 BTU/hr) Vertical Flame Test rated.

  • Practical Installation Feature: Includes a ripcord under the jacket for easy and fast jacket removal on-site.

  • Temperature Rating: Rated from -20°C to 105°C (FAS) or -20°C to 60°C (LVT).

  • High-Quality Materials: Flame-retardant PVC insulation and jacket with excellent color definition and workability.

Specifications

  • Voltage Rating: 30V (LVT)

  • Conductor: Solid Bare Copper (18 AWG & 16 AWG)

  • Insulation: PVC or Polypropylene

  • Jacket: PVC, Standard Brown Color (Custom colors available)

Construction

  • Conductors: Solid Bare Copper.

  • Insulation: PVC or Polypropylene insulation.

  • Jacket: PVC, typically Brown. A ripcord is integrated under the jacket.

  • Color: Standard Brown (customizable upon request).

Technical Parameters

Conductor Size Conductor Count Insulation Thickness Jacket Thickness Cable O.D.
18 AWG 2 0.015 in. / 0.38 mm 0.030 in. / 0.76 mm 0.201 in. / 5.10 mm
18 AWG 2 0.015 in. / 0.38 mm 0.030 in. / 0.76 mm 0.215 in. / 5.40 mm
18 AWG 3 0.015 in. / 0.38 mm 0.030 in. / 0.76 mm 0.211 in. / 5.30 mm
18 AWG 4 0.015 in. / 0.38 mm 0.030 in. / 0.76 mm 0.231 in. / 5.80 mm
18 AWG 5 0.015 in. / 0.38 mm 0.030 in. / 0.76 mm 0.241 in. / 6.10 mm
18 AWG 6 0.015 in. / 0.38 mm 0.030 in. / 0.76 mm 0.258 in. / 6.50 mm
18 AWG 8 0.015 in. / 0.38 mm 0.030 in. / 0.76 mm 0.288 in. / 7.30 mm
18 AWG 10 0.015 in. / 0.38 mm 0.030 in. / 0.76 mm 0.316 in. / 8.10 mm
16 AWG 2 0.015 in. / 0.38 mm 0.030 in. / 0.76 mm 0.222 in. / 5.60 mm
16 AWG 2 0.015 in. / 0.38 mm 0.030 in. / 0.76 mm 0.225 in. / 5.70 mm
16 AWG 3 0.015 in. / 0.38 mm 0.030 in. / 0.76 mm 0.234 in. / 5.90 mm
16 AWG 4 0.015 in. / 0.38 mm 0.030 in. / 0.76 mm 0.255 in. / 6.40 mm
