Product Overview
The CHEPJ95/SC is a heavy-duty, armored marine communication cable that delivers maximum fire safety and physical protection for critical circuits. It combines EPR insulation, galvanized steel wire armor, and a dual-layer Cross-linked Polyolefin (SHF2) sheath within a full Low Smoke Halogen Free (LSHF) Flame Retardant construction. Designed for exposed or high-risk installations, this cable ensures circuit integrity and safety in the most demanding marine, offshore, and industrial environments.
Key Features & Benefits
-
Unmatched Fire Safety & Durability: Features full Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) certification, paired with a highly durable dual-layer SHF2 sheath. This provides exceptional resistance to fire, abrasion, chemicals, and weathering.
-
Superior Mechanical Protection: The galvanized steel wire braid armor (9) offers maximum defense against crushing, impact, and rodent damage, making the cable suitable for direct burial, tray installation, and exposed runs.
-
Comprehensive Safety Solution: Integrates the highest standards of mechanical protection (steel armor) with the best-in-class fire safety (LSHF/SHF2), providing a complete solution for safety-critical and physically vulnerable pathways.
-
Long-Term Reliability: EPR insulation ensures stable electrical performance at temperatures up to 90°C, supported by the superior environmental resistance of the SHF2 sheath system.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
-
Outer Sheath Color: Standard Black (other colors available on request).

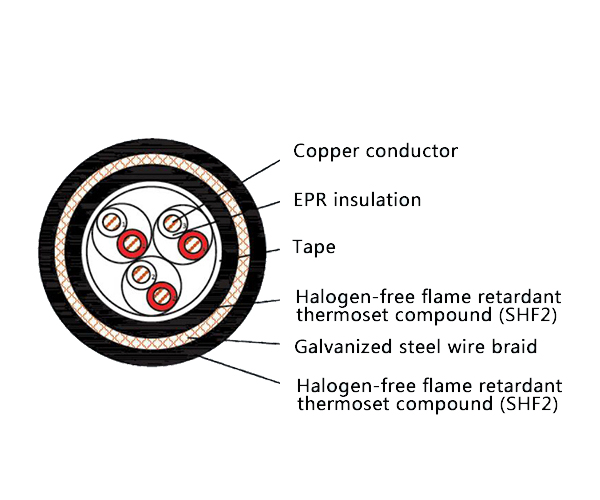

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 5 | Cross-linked Polyolefin (SHF2) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is engineered for the most demanding, exposed installations where safety and durability cannot be compromised:
-
Marine & Offshore: Essential communication, alarm, and control circuits on external decks, in machinery spaces, and on offshore platforms where exposure to physical damage and stringent LSHF safety codes are simultaneous requirements.
-
Industrial & Infrastructure: Critical data and control lines in tunnels, power generation facilities, chemical plants, and heavy industry that require a combination of robust mechanical armor and certified low smoke, zero halogen fire safety performance.
