Product Overview
The CHEPFP90/SC is a heavy-duty, Low Smoke Halogen Free (LSHF) marine communication cable designed for installation within protective conduits, ducts, or trunking systems. It features a galvanized steel wire armor for superior mechanical protection and a dedicated metallic screen for EMI shielding, all within a Halogen-Free, Low Smoke Flame Retardant (SC) construction. With its “Without Outer Sheath” (0) design and Thermoplastic Polyolefin (SHF1) inner sheath, this cable is engineered to provide maximum safety and durability for critical circuits in demanding environments where external protection is provided by the installation method.
Key Features & Benefits
-
Conduit-Optimized, Armored Design: The galvanized steel wire braid armor (9) offers unmatched crushing resistance, while the absence of an outer sheath (0) reduces cable diameter and friction, making it ideal for pulling into conduits, cable ducts, or enclosed trunking.
-
Superior Fire Safety Performance: Provides full Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties, crucial for minimizing hazardous fumes and maintaining visibility during a fire. Complies with IEC 60332 flame retardancy standards.
-
Effective EMI/RFI Shielding: The integrated tinned copper braid or foil screen (P) protects sensitive telecommunication and instrumentation signals from electromagnetic interference, ensuring reliable data transmission in electrically noisy environments.
-
Robust & Cost-Effective: The EPR insulation ensures thermal stability (90°C), and the SHF1 inner sheath provides a tough, chemically resistant layer, offering a durable solution that balances performance with cost-effectiveness.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
Construction Details

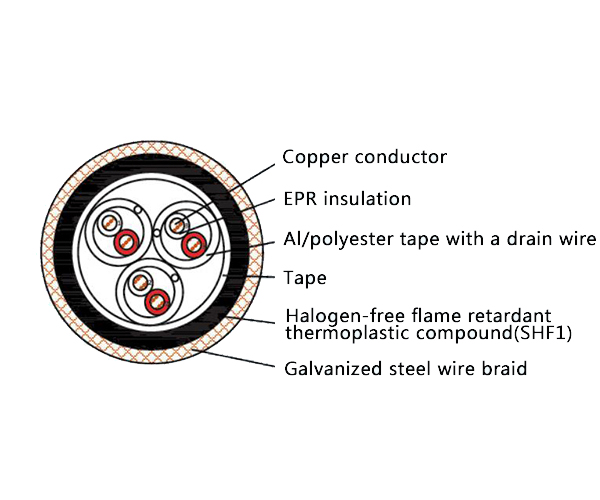

| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Screen | P | Tinned Copper Wire Braid, or Alu/Polyester Tape + Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This armored LSHF cable is specifically designed for protected, safety-critical pathways:
-
Marine & Offshore: Fire alarm systems, emergency communications, and essential control wiring on ships and oil platforms, where cables are routed inside metal conduits or protected ducts to meet strict LSHF safety codes and withstand harsh conditions.
-
Industrial & Infrastructure: Critical data and control lines in power plants, chemical factories, tunnels, and industrial facilities that require conduit installation combined with the enhanced safety of low smoke, zero halogen materials and protection against physical damage.
