Product Overview
The CHEPFP/SC is a screened, Low Smoke Halogen Free (LSHF) marine communication cable designed for reliable data transmission in safety-sensitive applications. It combines EPR insulation for thermal stability with a Thermoplastic Polyolefin (SHF1) sheath, a dedicated metallic screen, and full LSHF compliance. This cable provides essential EMI protection and superior fire safety performance—minimizing smoke and toxic fumes—making it an ideal choice for internal shipboard communications, instrumentation, and control systems where enhanced safety is required.
Key Features & Benefits
-
Enhanced Fire Safety: Certified Halogen-Free (IEC 60754) and Low Smoke (IEC 61034), reducing corrosive gas emission and improving visibility in emergency situations. Complies with IEC 60332 flame retardancy standards for added safety in bundled installations.
-
Effective EMI/RFI Protection: The integrated tinned copper braid or Alu/Polyester tape screen safeguards sensitive telecommunication and instrumentation signals from electromagnetic interference, ensuring clear and reliable data transmission.
-
Cost-Effective LSHF Solution: Utilizes a Thermoplastic Polyolefin (SHF1) sheath that meets stringent LSHF requirements, offering a durable, environmentally resistant, and economical cable solution for general marine and industrial use.
-
Flexible and Lightweight: The unarmored design with a thermoplastic sheath makes this cable more flexible and easier to handle and install in cable trays, conduits, or behind panels compared to armored variants.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
-
Sheath Color: Standard Black (other colors available on request).

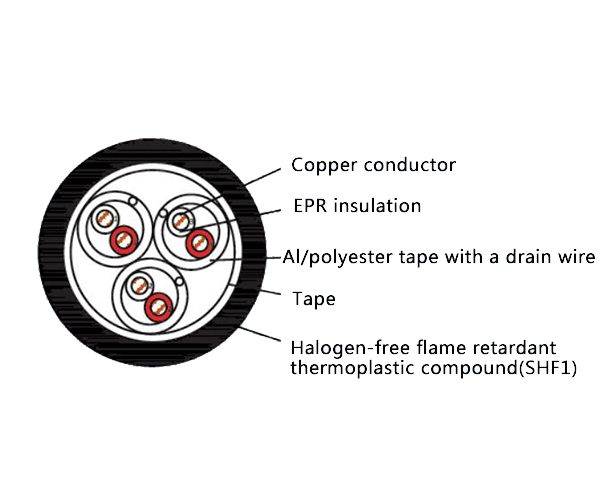

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) |
| Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Screen | P | Tinned Copper Wire Braid, or Alu/Polyester Tape + Copper Drain Wire |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This screened LSHF cable is designed for general safety and signal integrity applications in:
-
Marine & Offshore: Internal telecommunication, computer networks, instrumentation, and alarm systems on ships and offshore platforms, particularly in accommodation areas, control rooms, and other spaces where LSHF regulations apply.
-
Industrial: Data transmission, process control, and instrumentation circuits in power plants, chemical facilities, and commercial buildings where protection against electrical noise and compliance with low smoke, zero halogen safety standards are required.
