Product Overview
The CHJPJ/SC is a premium, lightweight Low Smoke Halogen Free (LSHF) Flame Retardant Marine Communication Cable, combining the electrical excellence of XLPE (Cross-Linked Polyethylene) insulation with the enhanced safety of a Halogen-Free Cross-Linked Polyolefin (SHF2) sheath. Designed for fixed installations where fire safety and clean combustion are critical, it is ideal for confined spaces on vessels and offshore platforms, as well as in sensitive industrial environments.
Key Features & Benefits
-
Superior Fire Safety Profile: Fully Halogen-Free (IEC 60754) and Low Smoke (IEC 61034), minimizing the emission of corrosive/toxic gases and reducing smoke density in a fire, enhancing visibility for safe evacuation.
-
Proven Flame Retardancy: Complies with IEC 60332-1 and IEC 60332-3-22 standards, effectively inhibiting the spread of flames along cable runs.
-
Durable & Reliable Construction: XLPE insulation ensures excellent dielectric strength, thermal stability (rated for 90°C), and resistance to aging. The Cross-Linked Polyolefin (SHF2) outer sheath provides robust mechanical and environmental protection without halogens.
-
Lightweight & Flexible Design: The non-armored, single-sheath construction makes the cable lighter and more flexible than armored alternatives, simplifying installation in cable trays, conduits, and tight spaces.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
-
Standard Sheath Color: Black (other colors typically available on request).

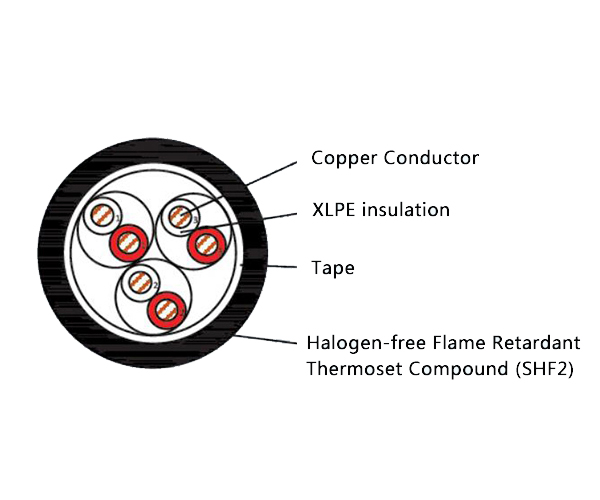

Cable Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Cross-Linked Polyethylene (XLPE) |
| Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is designed, manufactured, and tested to meet the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specifically engineered for critical communication and control circuits in environments with high safety requirements:
-
Marine & Offshore: Telecommunication, instrumentation, computer, and data processing systems on ships, oil rigs, and offshore platforms, especially in accommodation, control rooms, and escape routes.
-
Demanding Industrial Sectors: Sensitive areas within power plants, chemical processing facilities, metallurgy plants, and mining operations where personnel safety and equipment protection from corrosive fumes are paramount.
