Product Overview
The CHJPF90/NC is a heavy-duty Fire Resistant and Steel Wire Armored marine communication cable designed for mission-critical systems where fire survivability and maximum mechanical protection are essential. It features a fire-resilient core of XLPE insulation over mica glass tape, a protective thermoplastic polyolefin inner sheath (SHF1), and a robust galvanized steel wire braid armor. Supplied without an outer sheath (Code 0), this configuration is engineered for direct burial, concrete embedment, or installations where a final, site-specific protective covering is applied. It complies with IEC 60331 Fire Resistant and IEC 60092 marine standards, offering a Halogen-Free, Low Smoke (LSHF) safety profile.
Key Features & Benefits
-
Assured Fire Circuit Integrity: Certified to IEC 60331, guaranteeing the cable maintains functionality during fire exposure for critical alarm, communication, and control systems.
-
Superior Mechanical Protection: The galvanized steel wire braid armor (Code 9) provides outstanding resistance against impact, crushing, and penetration, suitable for the harshest environments.
-
Installation & Customization Flexibility: The lack of an outer sheath allows for direct use in poured concrete, direct burial, or facilitates the addition of a corrosion-resistant or location-specific oversheath on-site, offering significant application versatility.
-
Comprehensive Safety Design: Combines fire resistance with Halogen-Free (IEC 60754), Low Smoke (IEC 61034), and Flame Retardant (IEC 60332) properties for maximum personnel safety and asset protection.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |

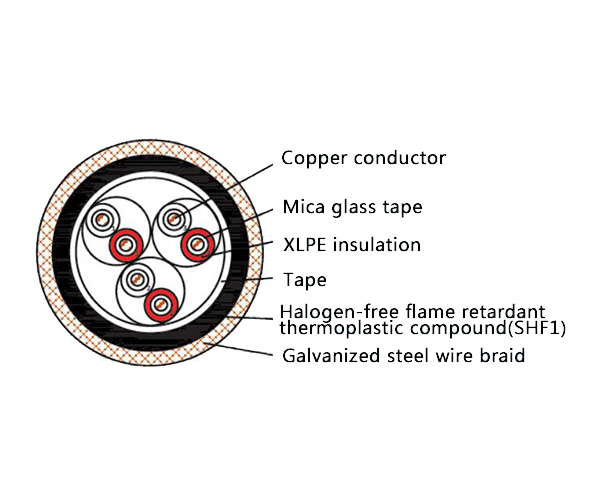

| Insulation | J | Mica Glass Tape + XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is engineered for the most demanding, high-risk installations requiring both fire integrity and ruggedness:
-
Critical telecommunication, data, and instrumentation circuits on ships, offshore oil & gas platforms, and marine structures, particularly for exposed, buried, or mechanically vulnerable routes.
-
Essential communication links in industrial plants such as power stations, chemical and petrochemical facilities, metallurgy, and mining, where cables may be installed in concrete or require additional, specialized external jacketing.
