Product Overview
The CHJPF86/NC is a Fire Resistant marine communication cable designed for critical signal and data transmission systems where operational integrity during fire events and electromagnetic interference (EMI) protection are both essential. It features a fire-resilient core of XLPE insulation over mica glass tape, a dual-layer thermoplastic polyolefin sheath (SHF1), and a tinned copper wire braid armor. As a Halogen-Free, Low Smoke Fire Resistant (LSHF) cable certified to IEC 60331, it is engineered for mission-critical circuits in marine and industrial settings requiring guaranteed performance under duress.
Key Features & Benefits
-
Certified Fire Circuit Integrity: Compliant with IEC 60331, ensuring continued operation of vital communication and control systems during a fire, a critical requirement for safety and emergency protocols.
-
Effective EMI Shielding & Flexibility: The tinned copper wire braid armor (Code 8) provides superior protection against electromagnetic interference (EMI) for clear signal integrity and offers greater flexibility compared to steel armor, simplifying installation in tight spaces.
-
Enhanced Safety Profile: Integrates fire resistance with Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties to minimize toxic fumes and improve visibility, alongside Flame Retardancy (IEC 60332) to prevent fire propagation.
-
Robust Double Protection: The thermoplastic polyolefin (SHF1) inner and outer sheaths offer excellent environmental resistance to moisture, oils, and abrasion, ensuring durability in demanding conditions.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
Construction Details

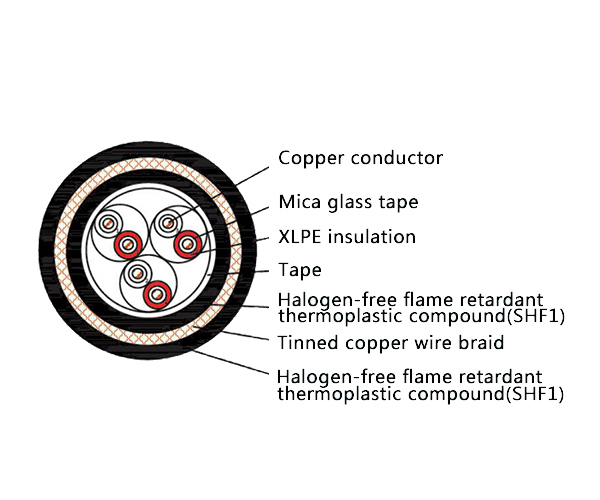

| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specifically designed for essential systems that require both fire survivability and signal clarity in environments with electrical noise:
-
Vital telecommunication, instrumentation, computer, and data processing networks on ships, oil & gas platforms, and offshore structures.
-
Critical communication and control circuits in industrial plants such as power generation facilities, chemical plants, metallurgy, and mining operations, especially where sensitive equipment is present.
