Product Overview
The CHJV90/NA is a high-performance Fire Resistant marine communication cable engineered to maintain circuit integrity during fire emergencies. It combines XLPE insulation with a mica glass tape barrier and is constructed with Halogen-Free, Low Smoke (LSHF) materials, ensuring reliable operation for critical telecommunication and data systems on ships, offshore platforms, and in hazardous industrial environments. This cable meets stringent IEC 60092 standards, including the critical IEC 60331 for fire resistance.
Key Features & Benefits
-
Certified Fire Resistance: Complies with IEC 60331, ensuring continued functionality of essential communication circuits during and after exposure to fire.
-
Enhanced Safety Profile: Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize toxic fumes and improve visibility. Also meets Flame Retardant standards (IEC 60332).
-
Robust & Reliable Construction: The Mica/XLPE insulation system provides excellent thermal and electrical properties, while options for copper braid or steel wire armor offer tailored mechanical and EMI protection.
-
Configuration Flexibility: Available with various inner/outer sheath and armor options (see construction table) to suit specific installation and environmental requirements.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 pairs.

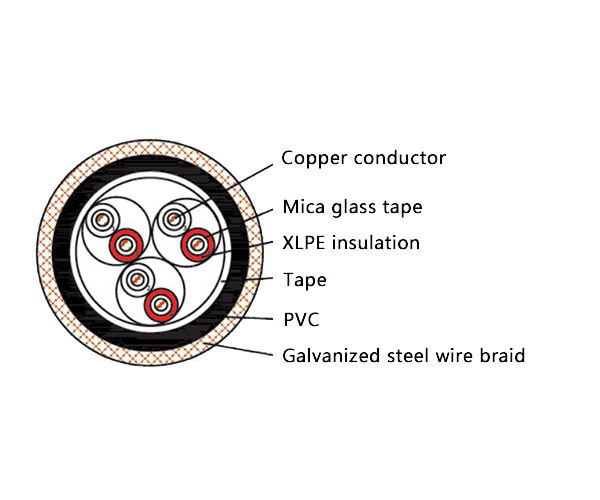

Construction Details
| Item | Code | Material / Description (Options) |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | V / F / PJ / PF | Options: PVC / PCP / Cross-linked Polyolefin (SHF2) / Thermoplastic Polyolefin (SHF1) |
| Screen | P | Tinned Copper Wire Braided, or Aluminium/Polyester Tape + Copper Drain Wire |
| Armor | 8 / 9 | Options: Tinned/Plain Copper Wire Braid or Galvanized Steel Wire Braid |
| Outer Sheath | 0 / 2 / 5 / 6 | Options: Without Outer Sheath / PVC / Cross-linked Polyolefin (SHF2) / Thermoplastic Polyolefin (SHF1) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | NA / NC | Fire Resistant or Halogen Free Low Smoke Fire Resistant |
Standards & Compliance
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is designed for critical communication pathways in:
-
Telecommunication, instrumentation, computer, and information processing systems on marine vessels and offshore constructions (e.g., oil & gas platforms).
-
Safety-critical and control networks in demanding industrial sectors including power plants, chemical processing, metallurgy, and mining.
