Product Overview
The CHJVP80/NA is a specialized Fire Resistant marine communication cable designed for maximum installation flexibility in critical fire-rated systems. It combines a fire-survivable mica glass tape + XLPE insulation core, a PVC inner sheath, an overall electromagnetic screen, and a highly flexible tinned copper wire braid armor. Supplied without an outer sheath (Code 0), this NA-grade cable provides a customizable, shielded, and protected core for integration into custom conduits, enclosures, or systems requiring a specific final over-jacket, ensuring compliance with the critical IEC 60331 fire resistance standard for marine, offshore, and industrial applications.
Key Features & Benefits
-
Assured Fire Survival (IEC 60331): The mica glass tape + XLPE insulation (Code J) is engineered to maintain circuit integrity and continue operating under fire conditions, ensuring that emergency communications, alarms, and control signals remain active.
-
Flexible Armor with Superior EMI Shielding: The tinned copper wire braid armor (Code 8) provides excellent mechanical protection with outstanding flexibility for complex routing. Combined with the overall screen (Code P), it offers robust protection against electromagnetic interference (EMI) for signal clarity.
-
Customizable Final Installation: The absence of an outer sheath (Code 0) offers ultimate adaptability for system integrators to apply a site-specific final over-sheath, conduit, or additional fireproofing layer, perfectly tailoring the cable to the final installation environment and safety protocols.
-
Protected Core Construction: The PVC inner sheath (Code V) provides initial environmental and mechanical protection to the insulated core before the application of the armor and the final, user-defined jacket.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

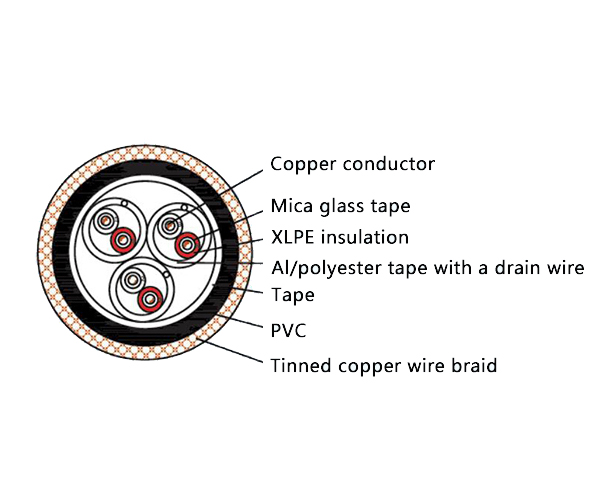

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulation |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Screen | P | Tinned Copper Wire Braided, or Aluminium/Polyester Tape + Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NA | Fire Resistant |
Standards & Compliance
This cable is manufactured in compliance with key international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
Applications
This cable is engineered for customizable, high-security installations where fire survival, flexibility, and EMI protection are critical:
-
Emergency telecommunication, alarm, and critical data networks within custom-built panels, conduits, or proprietary systems on ships, oil & gas platforms, and offshore structures.
-
Vital control and communication circuits in power generation, chemical plants, and heavy industrial facilities that require a fire-resistant, shielded, and flexible armored cable core for final integration into a specialized containment or protection system.
