Product Overview
The CHJVP90/NA is a specialized Fire Resistant marine communication cable designed for ultimate integration flexibility in critical systems. It features a fire-survivable mica glass tape + XLPE insulation core, a PVC inner sheath, an overall electromagnetic screen, and robust galvanized steel wire armor. Supplied without an outer sheath (Code 0), this NA-grade cable provides a customizable, protected core for installation into custom conduits, trunking, or systems requiring a specific final over-jacket, ensuring compliance with IEC 60331 for fire resistance in marine, offshore, and industrial applications.
Key Features & Benefits
-
Assured Fire Survival (IEC 60331): The mica glass tape + XLPE insulation (Code J) is designed to maintain circuit integrity under fire, ensuring critical emergency and control signals remain operational.
-
Complete EMI/RFI Shielding & Core Protection: The overall screen (Code P) protects against electromagnetic interference, while the PVC inner sheath (Code V) provides initial environmental protection to the core before the armored layer.
-
Maximum Mechanical Core Protection: The galvanized steel wire braid armor (Code 9) offers superior resistance against impact and crushing forces.
-
Customizable Final Installation: The absence of an outer sheath (Code 0) makes this cable ideal for system integrators and installers who need to apply a site-specific final over-sheath, conduit, or additional fireproofing tailored to the exact installation requirements.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

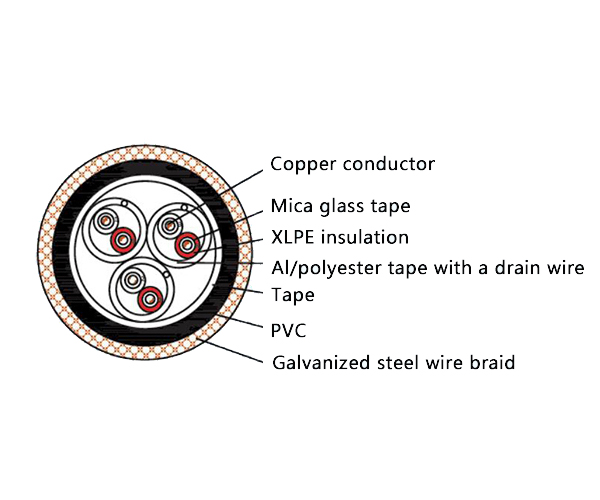

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulation |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Screen | P | Tinned Copper Wire Braided, or Aluminium/Polyester Tape + Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NA | Fire Resistant |
Standards & Compliance
This cable is manufactured in compliance with key international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
Applications
This cable is designed for customizable, high-security installations requiring fire survival and EMI protection:
-
Emergency telecommunication, alarm, and critical data networks within custom-built panels, conduits, or protected pathways on ships and offshore platforms.
-
Vital control and communication circuits in power plants, chemical industry, and heavy industrial facilities where a fire-resistant, shielded, and armored cable core is specified for final integration into a proprietary containment system.
