Product Overview
The CHJ96/SC is a robust Low Smoke Halogen Free (LSHF) Flame Retardant marine communication cable designed for reliable telecommunication, instrumentation, and data transmission in demanding environments. It features XLPE (Cross-linked Polyethylene) insulation for superior electrical performance, heavy-duty galvanized steel wire armor for mechanical protection, and a Low Smoke Halogen Free (SHF1) thermoplastic polyolefin outer sheath. This cable provides enhanced fire safety and durability for critical communication systems on ships, offshore platforms, and in industrial applications, fully complying with IEC 60092 standards.
Key Features & Benefits
-
Enhanced Fire Safety (LSHF/SC Grade): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize toxic and corrosive fume emission, improving safety during evacuation. Certified Flame Retardant (IEC 60332-1 & -3-22) to inhibit fire spread.
-
Superior Mechanical Protection: The galvanized steel wire braid armor (Code 9) provides excellent resistance against impact, crushing, and mechanical damage, ideal for exposed or high-risk areas.
-
Reliable & Durable Performance: XLPE insulation ensures excellent thermal stability (90°C), moisture resistance, and long-term electrical integrity.
-
Cost-Effective Solution: An optimal choice for applications requiring high safety standards and mechanical protection without the need for individual pair or overall electromagnetic screening.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

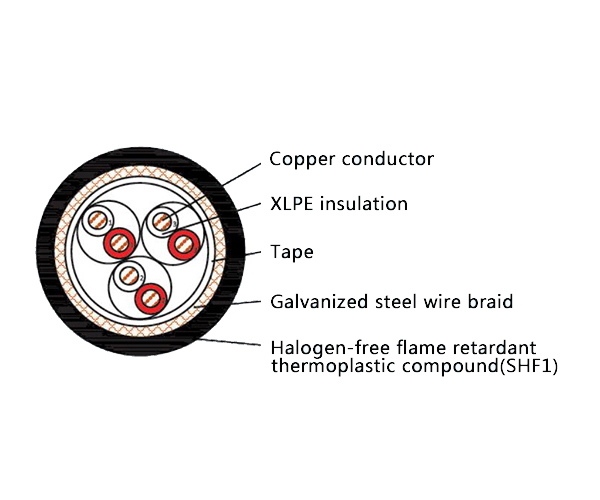

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Armor | 9 | Galvanized Steel Wire Braid |
| Sheath | 6 | Thermoplastic Polyolefin (SHF1) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is designed for:
-
Telecommunication, instrumentation, and computer systems on marine vessels and offshore constructions (e.g., oil & gas platforms).
-
General communication and control wiring in industries such as power generation, chemical processing, metallurgy, and mining.
