Product Overview
The CHJP82/SA is a flexible, flame-retardant marine communication cable designed for reliable telecommunication, instrumentation, and data transmission. Featuring XLPE (Cross-linked Polyethylene) insulation, an overall electromagnetic screen, a flexible tinned copper wire braid armor, and a PVC outer sheath, this cable offers a balance of EMI protection, mechanical resilience, and installation flexibility. Certified for SA-grade flame retardancy in bunched installations, it is suitable for critical systems on ships, offshore platforms, and in industrial environments, in compliance with IEC 60092 standards.
Key Features & Benefits
-
Certified Flame Retardant Safety: Rated for SA-grade Flame Retardancy (IEC 60332-1 & -3-22) for performance in bunched cable installations, helping to inhibit the spread of fire.
-
Flexible Armor with EMI Shielding: The tinned copper wire braid armor (Code 8) provides robust mechanical protection while maintaining high flexibility for easier installation in tight spaces. Combined with the overall screen (Code P), it ensures protection against electromagnetic interference (EMI) for clear signal transmission.
-
Durable & Cost-Effective Sheathing: A tough PVC outer sheath (Code 2) offers reliable resistance to abrasion, moisture, and general environmental wear.
-
Reliable Electrical Performance: XLPE insulation ensures stable electrical properties and thermal endurance at a continuous 90°C operating temperature.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 pairs.

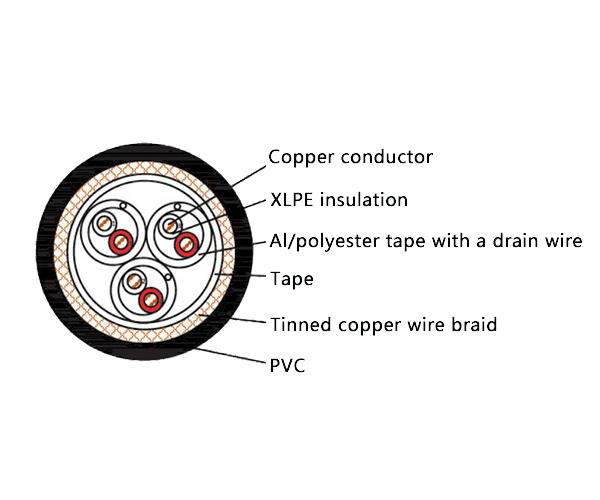

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Screen | P | Tinned Copper Wire Braided, or Aluminium/Polyester Tape + Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Sheath | 2 | Polyvinyl Chloride (PVC) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is manufactured in compliance with key international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
Applications
This cable is designed for:
-
Telecommunication, instrumentation, computer, and information processing systems on marine vessels and offshore constructions (e.g., oil platforms).
-
Data and control networks in industries such as power plants, chemical processing, metallurgy, and mining.
