Product Overview
The CHJ95/SC is a high-performance Low Smoke Halogen Free (LSHF) Flame Retardant marine communication cable engineered for critical telecommunication, instrumentation, and data systems. Featuring XLPE (Cross-linked Polyethylene) insulation, heavy-duty galvanized steel wire armor, and a superior cross-linked polyolefin (SHF2) outer sheath, this cable delivers enhanced fire safety, exceptional mechanical protection, and long-term environmental durability. It is designed for reliable operation in demanding marine, offshore, and industrial environments, fully complying with IEC 60092 standards.
Key Features & Benefits
-
Enhanced Fire Safety (LSHF/SC Grade): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) construction minimizes toxic/corrosive fume and smoke emission. Certified Flame Retardant (IEC 60332-1 & -3-22) to inhibit fire spread.
-
High-Performance SHF2 Sheath: The cross-linked polyolefin (SHF2) sheath (Code 5) provides superior thermal stability, chemical resistance, and mechanical toughness compared to standard thermoplastic sheaths, ensuring excellent long-term protection.
-
Maximum Mechanical Protection: The galvanized steel wire braid armor (Code 9) offers outstanding resistance against impact, crushing, and mechanical damage.
-
Reliable & Durable: XLPE insulation ensures excellent electrical properties, thermal endurance (90°C), and moisture resistance for stable, long-lasting performance.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

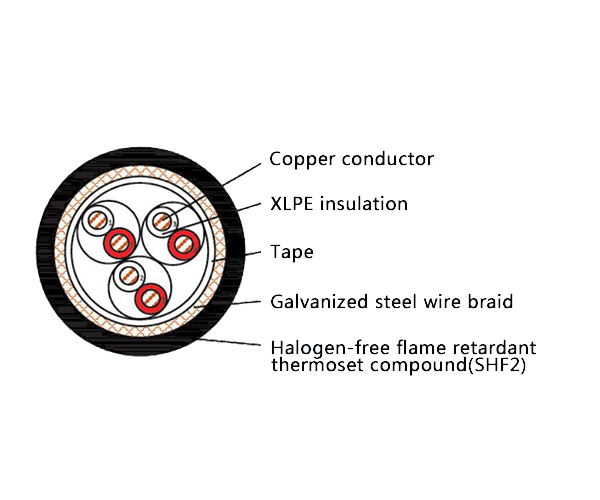

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Armor | 9 | Galvanized Steel Wire Braid |
| Sheath | 5 | Cross-linked Polyolefin (SHF2) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is designed for:
-
Telecommunication, instrumentation, computer, and information processing systems on ships, oil & gas platforms, and offshore structures.
-
Communication and control wiring in demanding industrial sectors such as power generation, chemical processing, metallurgy, and mining.
