Product Overview
The CHJP85/SC is a high-flexibility Low Smoke Halogen Free (LSHF) Flame Retardant marine communication cable engineered for superior signal integrity and ease of installation in complex systems. It features XLPE (Cross-linked Polyethylene) insulation, an overall electromagnetic screen, a highly flexible tinned copper wire braid armor, and a durable cross-linked polyolefin (SHF2) outer sheath. This combination delivers excellent fire safety, robust EMI protection, outstanding mechanical resilience, and superior environmental resistance for critical telecommunication and data networks on ships, offshore platforms, and in industrial facilities, in full compliance with IEC 60092 standards.
Key Features & Benefits
-
Enhanced Fire Safety (LSHF/SC Grade): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize toxic fume emission and smoke density. Certified Flame Retardant (IEC 60332-1 & -3-22) to inhibit fire spread.
-
Flexible Armor with Superior EMI Shielding: The tinned copper wire braid armor (Code 8) provides excellent mechanical protection with high flexibility for easy routing. Combined with the overall screen (Code P), it ensures outstanding protection against electromagnetic interference (EMI).
-
High-Performance SHF2 Sheath: The cross-linked polyolefin (SHF2) sheath (Code 5) offers exceptional thermal stability, chemical resistance, and mechanical toughness, providing superior long-term protection compared to standard thermoplastic sheaths.
-
Optimal for Complex Installations: The flexible construction and high-performance sheath make this cable ideal for demanding installations where routing ease, durability, and signal clarity are paramount.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 pairs.

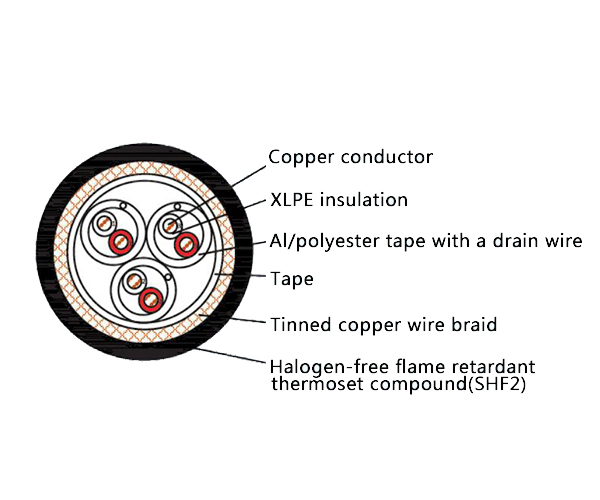

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Screen | P | Tinned Copper Wire Braided, or Aluminium/Polyester Tape + Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Sheath | 5 | Cross-linked Polyolefin (SHF2) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is designed for:
-
Telecommunication, instrumentation, computer, and high-speed data networks on ships and offshore platforms requiring flexible, shielded cabling.
-
Sensitive control and communication systems in industries such as power generation, chemical processing, and automation.
