Product Overview
The CHJP86/SC is a flexible Low Smoke Halogen Free (LSHF) Flame Retardant marine communication cable engineered for data and signal transmission where ease of installation and electromagnetic compatibility are critical. It combines XLPE (Cross-linked Polyethylene) insulation, an overall electromagnetic screen, a highly flexible tinned copper wire braid armor, and a LSHF thermoplastic polyolefin (SHF1) sheath. This design provides superior fire safety, excellent EMI protection, and outstanding flexibility for routing in confined spaces, making it ideal for complex telecommunication and instrumentation systems on ships, offshore platforms, and in industrial settings. It is fully compliant with IEC 60092 standards.
Key Features & Benefits
-
Enhanced Fire Safety (LSHF/SC Grade): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize toxic fume emission and smoke opacity. Certified Flame Retardant (IEC 60332-1 & -3-22) to inhibit fire spread.
-
Flexible Armor with Dual EMI Shielding: The tinned copper wire braid armor (Code 8) provides robust mechanical protection while ensuring high flexibility. Combined with the dedicated overall screen (Code P), it offers superior shielding against electromagnetic interference (EMI) for pristine signal integrity.
-
Superior Installability: The flexible copper braid armor makes this cable significantly easier to handle, pull, and route in tight spaces compared to rigid steel-armored alternatives, reducing installation time and complexity.
-
Durable & Reliable: XLPE insulation ensures stable electrical performance, thermal endurance, and moisture resistance at a continuous 90°C operating temperature.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 pairs.

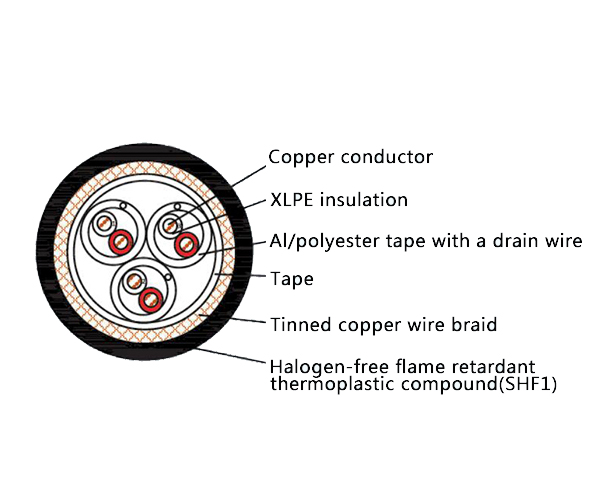

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Screen | P | Tinned Copper Wire Braided, or Aluminium/Polyester Tape + Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Sheath | 6 | Thermoplastic Polyolefin (SHF1) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is designed for:
-
Telecommunication, instrumentation, computer, and data networks on ships and offshore platforms where flexible, shielded cabling is required.
-
Sensitive control and communication systems in industries such as power generation, chemical processing, and mining.
