Product Overview
The CHJP92/NA is a Fire Resistant marine communication cable designed to maintain critical telecommunication and data circuit integrity during fire emergencies. It features a fire-survivable mica glass tape + XLPE insulation system, an overall electromagnetic screen, heavy-duty galvanized steel wire armor, and a protective PVC outer sheath. Engineered to meet the stringent IEC 60331 standard for fire resistance, this cable is built for essential communication and control systems on vessels, offshore platforms, and in industrial plants where maintaining signal transmission under fire conditions is paramount.
Key Features & Benefits
-
Critical Fire Resistance (IEC 60331): The core mica glass tape + XLPE insulation (Code J) is engineered to maintain circuit integrity and continue operating for a specified duration under direct flame, a critical requirement for emergency and safety systems.
-
Robust Mechanical & EMI Protection: The galvanized steel wire braid armor (Code 9) provides maximum protection against impact and crushing. The integrated overall screen (Code P) shields against electromagnetic interference (EMI) for clear signal transmission.
-
Durable Outer Protection: A tough PVC outer sheath (Code 2) offers reliable resistance to abrasion, moisture, oils, and general environmental wear, ensuring long-term durability.
-
Flame Retardant: Complies with Flame Retardant standards (IEC 60332-1 & -3-22) to inhibit the spread of fire along the cable.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

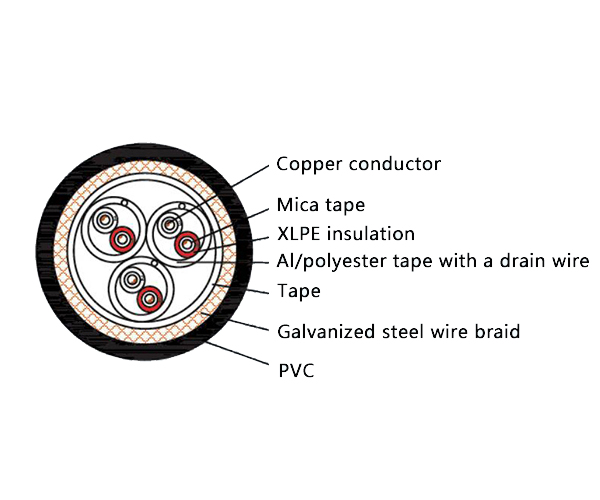

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulation |
| Screen | P | Tinned Copper Wire Braided, or Aluminium/Polyester Tape + Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Sheath | 2 | Polyvinyl Chloride (PVC) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | NA | Fire Resistant |
Standards & Compliance
This cable is manufactured in compliance with key international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
Applications
This cable is specified for critical systems where circuit survival during a fire is essential:
-
Emergency telecommunication, alarm systems, instrumentation, and essential data networks on ships, oil & gas platforms, and offshore structures.
-
Critical control and data circuits in power plants, chemical industry, metallurgy, and mining where fire-resistant performance is required for safety and operational continuity.
