Product Overview
The CHJP86/NC is a Fire Resistant, Low Smoke Halogen Free (LSHF) marine communication cable engineered to ensure continuous operation of vital systems during emergencies. It combines a mica glass tape + XLPE insulation system (IEC 60331) for circuit integrity, an overall EMI screen, a flexible tinned copper wire braid armor, and a LSHF thermoplastic polyolefin (SHF1) sheath. This construction offers a unique blend of fire survival capability, enhanced safety (LSHF), excellent flexibility, and electromagnetic protection for critical telecommunication and data networks on ships, offshore platforms, and in industrial facilities, complying with IEC 60092 standards.
Key Features & Benefits
-
Superior Fire Resistance & Circuit Integrity: The mica glass tape + XLPE insulation (Code J) is designed to maintain circuit operation under fire conditions (IEC 60331), ensuring emergency communication and control signals remain active when needed most.
-
Enhanced Fire Safety (LSHF/NC Grade): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize toxic fume emission and smoke density, crucial for safe evacuation. The cable is also Flame Retardant (IEC 60332).
-
Flexible Armor with Dual EMI Shielding: The tinned copper wire braid armor (Code 8) provides robust mechanical protection while offering high flexibility for easier installation in tight spaces. Combined with the overall screen (Code P), it delivers superior protection against electromagnetic interference for signal clarity.
-
Optimized for Installability & Safety: The flexible copper armor and LSHF sheath make this cable easier to handle and route than rigid steel-armored alternatives, without compromising on fire safety or protection, ideal for complex or confined installations.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

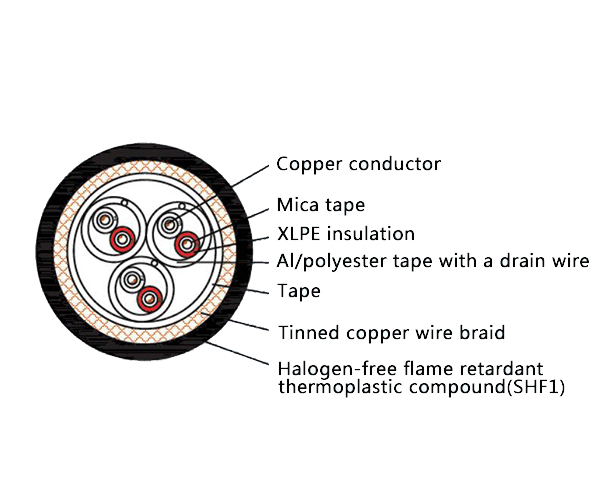

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulation |
| Screen | P | Tinned Copper Wire Braided, or Aluminium/Polyester Tape + Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Sheath | 6 | Thermoplastic Polyolefin (SHF1) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is designed for critical, flexible installations where fire survival, EMI protection, and ease of routing are required:
-
Emergency telecommunication, data networks, and instrumentation systems on ships, oil & gas platforms, and offshore structures with complex cable pathways.
-
Vital control and communication circuits in power plants, chemical processing, mining, and industrial plants that require a fire-resistant, flexible, and shielded cabling solution.
