CKEPJP85/SC Screened and Flexible Armored Marine Control Cable
Product Overview
The CKEPJP85/SC is a high-flexibility, screened and armored marine control cable designed for applications requiring excellent electromagnetic shielding, mechanical protection, and frequent bending or vibration resistance. It combines EPR insulation with a tinned copper braid screen, a tinned copper braid armor (8), and is fully sheathed in Halogen-Free, Low Smoke Flame Retardant (LSHF) cross-linked polyolefin (SHF2). This construction provides superior EMI protection, durability, and enhanced fire safety for dynamic or space-constrained installations on vessels, offshore platforms, and in industrial plants.
Key Features & Benefits
-
Superior EMI Shielding & Flexible Armor: Features dual tinned copper braid layers for both the screen (P) and armor (8), offering exceptional protection against electromagnetic interference (EMI) while maintaining high flexibility for routing in tight spaces or areas subject to movement.
-
Enhanced Safety & Environmental Resistance: The Low Smoke Halogen Free (LSHF) SHF2 sheaths (IEC 60754, IEC 61034) provide excellent flame retardancy (IEC 60332), chemical resistance, and durability against oils and moisture.
-
Robust and Reliable: EPR insulation ensures stable electrical performance at a continuous temperature of 90°C. The overall construction is designed for long service life in harsh marine and industrial environments.
-
Optimized for Flexible Use: The copper braid armor offers effective mechanical protection without compromising cable flexibility, making it ideal for control panels, moving machinery connections, and complex cable runs.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

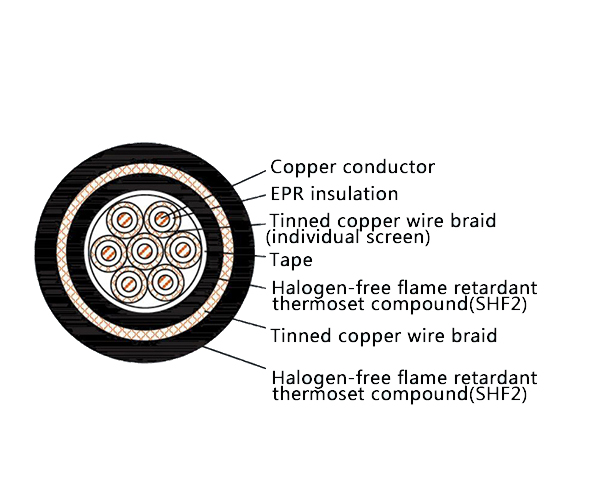

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR Insulation |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Screen | P | Tinned Copper Wire Braid, OR Alu/Polyester Tape + Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 5 | Cross-linked Polyolefin (SHF2) |
| Sheath Color | / | Black or Other Color |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following key international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
Ideal for sensitive control and power circuits in environments demanding flexibility, EMI shielding, and robust protection:
-
Control and instrumentation systems on marine vessels and offshore platforms where flexibility and space are constraints.
-
Connections to moving equipment, PLC systems, and automation controls in industrial facilities such as power plants, chemical processing, mining, and manufacturing.
