CKEPJP95/SC Screened and Armored Marine Control Cable
Product Overview
The CKEPJP95/SC is a high-performance, fully protected marine control cable engineered for the most demanding and high-interference environments. It combines EPR insulation with an overall screen (P) and galvanized steel wire braid armor (9), all sheathed in Halogen-Free, Low Smoke Flame Retardant (LSHF) cross-linked polyolefin (SHF2). This design provides unparalleled electromagnetic shielding, mechanical protection, and fire safety for critical power, lighting, and control circuits on ships, offshore platforms, and in harsh industrial settings.
Key Features & Benefits
-
Superior EMI & Mechanical Protection: Features a tinned copper braid or tape screen for effective EMI/RFI suppression, plus a galvanized steel wire braid armor for maximum mechanical strength, crush resistance, and rodent protection.
-
Enhanced Fire Safety & Durability: Constructed entirely with Halogen-Free (IEC 60754), Low Smoke (IEC 61034) materials. The cross-linked polyolefin (SHF2) inner and outer sheaths offer excellent flame retardancy (IEC 60332), chemical resistance, and thermal stability.
-
Robust Marine Construction: EPR insulation ensures reliable performance at 90°C. The dual-layer SHF2 sheath with integrated armor provides long-term durability against moisture, oils, and environmental stress.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

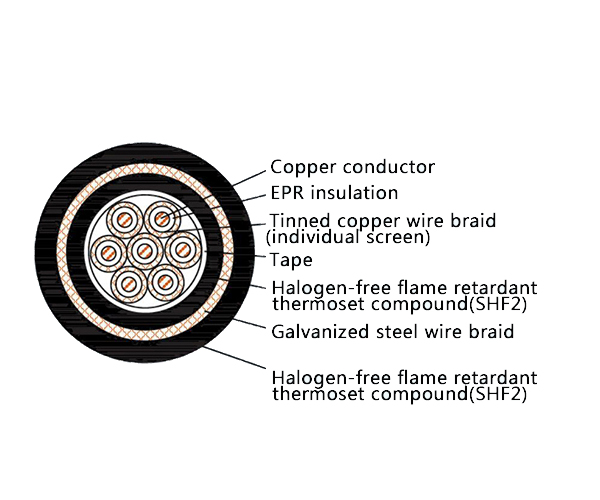

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR Insulation |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Screen | P | Tinned Copper Wire Braid, OR Alu/Polyester Tape + Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 5 | Cross-linked Polyolefin (SHF2) |
| Sheath Color | / | Black or Other Color |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
Manufactured in full compliance with international marine and safety standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
Designed for critical circuits in environments requiring maximum interference immunity and physical protection:
-
Essential power, control, and instrumentation systems in high-noise or high-risk areas of marine vessels, oil rigs, and offshore platforms.
-
Automation, process control, and safety shutdown systems in challenging industrial sectors such as power generation, chemical plants, mining, and metallurgy.
