Product Overview
The CKEPJ85/NC is a premium double-sheathed, Fire Resistant marine control cable designed to provide both exceptional circuit integrity during fire emergencies and enhanced mechanical durability. Combining Mica/EPR fire-resistant insulation with a Halogen-Free, Low Smoke (LSHF) dual-layer SHF2 sheath and copper braid armor, it is engineered for critical power, lighting, and control systems in the most demanding marine, offshore, and industrial applications. This cable meets IEC 60331 fire resistance and IEC 60092 standards.
Key Features & Benefits
-
Certified Fire Resistance: Complies with IEC 60331, ensuring continued circuit operation for a specified duration under direct flame, which is vital for emergency systems, alarms, and control circuits.
-
Enhanced Mechanical & Environmental Protection: The dual-layer Cross-linked Polyolefin (SHF2) sheath provides superior resistance to abrasion, chemicals, and weathering. Tinned Copper Braid Armor offers effective electromagnetic interference (EMI) shielding and mechanical protection.
-
Comprehensive Fire Safety: Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties prevent corrosive gas emission and improve visibility. Also rated for general Flame Retardancy (IEC 60332).
-
Robust Construction for Harsh Environments: Mica glass tape with EPR insulation ensures fire survival and thermal stability (90°C), making the cable ideal for fixed installations in challenging conditions.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Outer Sheath Color: Black (other colors available upon request).

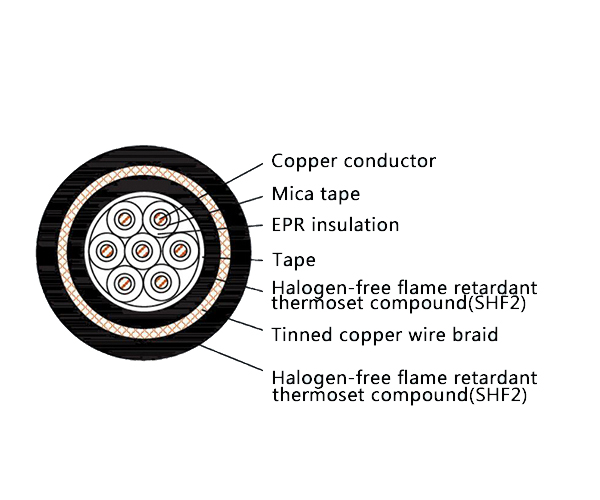

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR Insulation |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 5 | Cross-linked Polyolefin (SHF2) |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specified for critical fixed installations requiring fire resistance, EMI shielding, and extra durability:
-
Marine & Offshore: Essential control, power, and safety systems on ships, oil platforms, and FPSOs where both fire integrity and signal integrity are crucial (e.g., control rooms, navigation systems, emergency lighting circuits).
-
High-Risk Industry: Key control and automation circuits in power plants, chemical processing facilities, mining operations, and metallurgy plants.
