Product Overview
The CKEPJP80/NC is a premium Fire Resistant and Low Smoke Halogen Free (LSHF) marine control cable designed for the most critical safety and control circuits. It combines EPR insulation with a mica glass tape barrier for certified fire resistance, Halogen-Free Low Smoke safety properties, an EMI/RFI screen, and a flexible tinned copper wire braid armor. Protected by a single Cross-linked Polyolefin (SHF2) inner sheath with no outer oversheath, this streamlined, grounding-ready design is engineered for vital systems in demanding marine, offshore, and industrial environments where ultimate safety, flexibility, and reliable grounding are required.
Key Features & Benefits
-
Dual Safety Certification: Fire Resistant (IEC 60331) to maintain circuit operation during a fire, and Halogen-Free Low Smoke (IEC 60754 & 61034) to minimize toxic fumes and smoke, ensuring both system integrity and personnel safety.
-
Flexible Armor & EMI Shielding: The tinned copper wire braid armor provides effective protection against abrasion and impact while offering excellent installation flexibility. The integrated electrical screen protects sensitive control signals from electromagnetic interference (EMI/RFI).
-
Grounding-Ready & Compact Design: The single SHF2 sheath over the armor, with no outer oversheath, allows for direct access to the conductive armor for secure grounding in panels or trays. This results in a more compact cable profile ideal for dense control panel wiring.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.

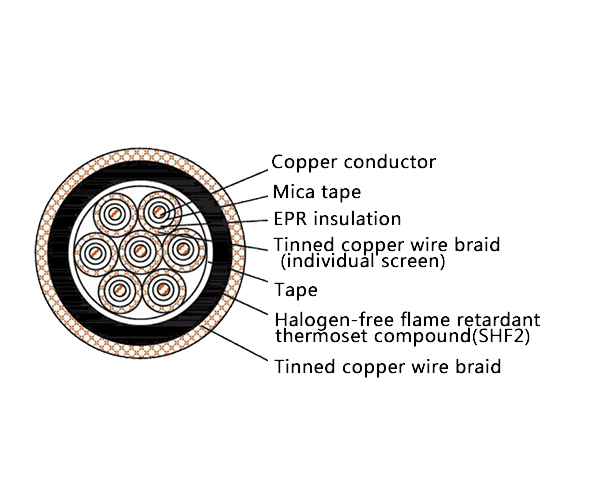

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Ethylene Propylene Rubber) Insulation |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminium/Polyester Tape with Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specified for vital circuits that require guaranteed operation during a fire, enhanced personnel safety, flexible protection, and a dedicated grounding path.
-
Marine & Offshore: Emergency Shutdown (ESD) systems, fire pump controls, emergency lighting, and critical alarm circuits on ships and offshore platforms, particularly where LSHF regulations apply and flexible, grounded armor is required for panel installation.
-
Industrial Control Panels & Safety Systems: Wiring for safety instrumented systems (SIS), PLC panels, and motor control centers (MCCs) in power plants and chemical facilities where fire resistance, low smoke toxicity, and a grounded, flexible cable design are essential.
