Product Overview
The CKJPJ95/SC is a top-tier Low Smoke Halogen Free (LSHF), Flame Retardant marine control cable engineered for critical circuits where maximum fire safety and extreme mechanical durability are required. It combines high-performance XLPE insulation, heavy-duty galvanized steel wire armor, and a robust double-layer Cross-linked Polyolefin (SHF2) sheath. This construction is designed to ensure personnel safety, protect vital systems, and withstand the harshest physical and environmental conditions in marine, offshore, and demanding industrial applications, fully complying with IEC 60092, IEC 60754 (Halogen Free), and IEC 61034 (Low Smoke) standards.
Key Features & Benefits
-
Ultimate Fire Safety (LSHF): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize the production of toxic, corrosive fumes and dense smoke during a fire, significantly enhancing evacuation safety and reducing secondary damage to equipment and structures.
-
Maximum Mechanical Protection: The galvanized steel wire braid armor provides superior resistance to crushing, impact, abrasion, and rodent attack, ensuring cable integrity in the most demanding installation environments.
-
Superior Sheath Performance: The double-layer SHF2 sheath offers exceptional thermal stability, mechanical toughness, and resistance to chemicals, oils, and moisture, providing a durable barrier that outperforms standard sheath materials.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Outer Sheath Color: Black (other colors available upon request).

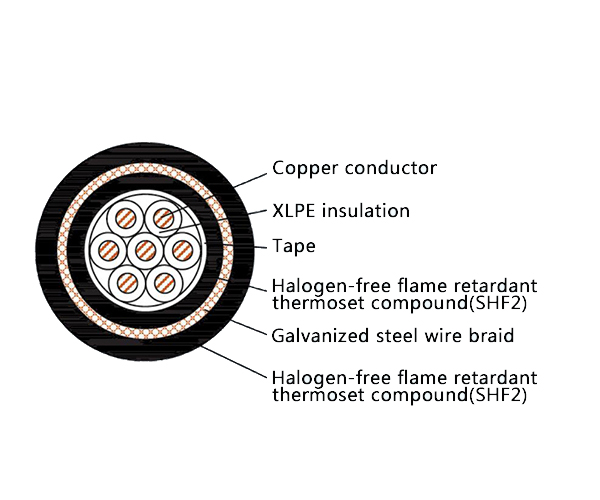

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 5 | Cross-linked Polyolefin (SHF2) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety and performance standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specified for the most vital and physically exposed circuits in high-safety and high-risk areas.
-
Marine & Offshore: Essential control, power, and safety system circuits on ships, oil & gas platforms, and FPSOs, especially in high-risk fire zones (engine rooms), exposed decks, and areas with severe mechanical hazards.
-
Critical Industrial Infrastructure: Control and automation systems in power generation plants (including nuclear), chemical processing facilities, mining operations, and heavy metallurgy where LSHF mandates, extreme physical hazards, and long-term reliability are paramount.
