Product Overview
The CKJPJ/SC is a premium Low Smoke Halogen Free (LSHF) and Flame Retardant marine control cable, designed for power, lighting, and control circuits where enhanced fire safety is a primary requirement. It features reliable XLPE insulation and an outer sheath made of Cross-linked Polyolefin (SHF2), a material known for its superior performance. This cable offers a significant safety advantage in confined spaces by minimizing smoke and toxic fumes, making it ideal for marine vessels, offshore platforms, and sensitive industrial facilities, in full compliance with IEC 60092, IEC 60754 (Halogen Free), and IEC 61034 (Low Smoke) standards.
Key Features & Benefits
-
Enhanced Fire Safety (LSHF): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties drastically reduce the emission of corrosive, toxic gases and smoke density during a fire, improving visibility for safe evacuation and reducing equipment damage.
-
High-Performance Sheath Material: The Cross-linked Polyolefin (SHF2) outer sheath provides excellent thermal stability, mechanical toughness, and resistance to environmental stress, offering better durability than standard compounds in demanding conditions.
-
Reliable & Durable Construction: XLPE insulation ensures stable electrical performance and long-term thermal endurance at temperatures up to 90°C. The cable is certified for Flame Retardancy (IEC 60332) in both single and bunched installations.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Sheath Color: Black (other colors available upon request).

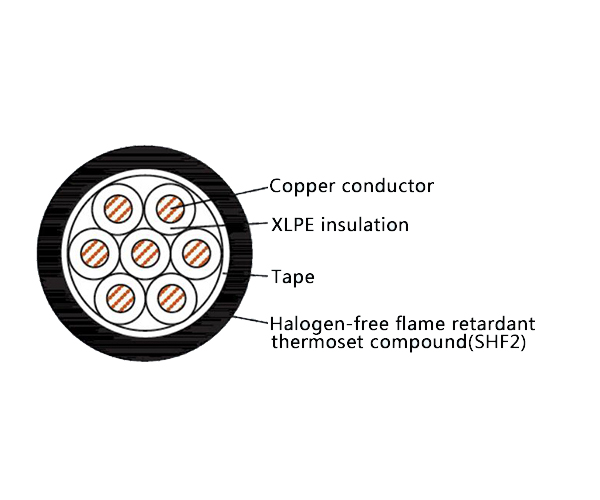

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety and performance standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specified for general control and power circuits in areas where enhanced fire safety is mandated or desired.
-
Marine & Offshore: Power, lighting, and control systems in accommodation areas, control rooms, bridge equipment, and escape routes on ships and oil platforms where LSHF regulations apply.
-
Public & Commercial Buildings: Control wiring in tunnels, airports, railway stations, and high-rise buildings where low smoke and non-toxic emissions are critical for life safety.
-
General Industry: Applications in power plants, chemical plants, and manufacturing facilities prioritizing personnel safety and asset protection from corrosive fumes.
