Product Overview
The CKJPF90/SC is a heavy-duty Low Smoke Halogen Free (LSHF), Flame Retardant marine control cable designed for power, lighting, and control systems requiring enhanced fire safety and maximum mechanical protection in a streamlined design. It features XLPE insulation, a galvanized steel wire braid armor, and a single Thermoplastic Polyolefin (SHF1) inner sheath with no outer oversheath. This construction prioritizes personnel safety, superior crush resistance, and grounding accessibility, making it ideal for the most demanding marine, offshore, and industrial installations. It fully complies with IEC 60092, IEC 60754 (Halogen Free), and IEC 61034 (Low Smoke) standards.
Key Features & Benefits
-
Enhanced Fire Safety (LSHF): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize toxic and corrosive fume emissions, significantly improving safety during fire incidents by enhancing visibility and reducing secondary hazards.
-
Maximum Mechanical Protection: The galvanized steel wire braid armor provides exceptional resistance to crushing, impact, abrasion, and rodent damage, ensuring circuit integrity in exposed or high-risk physical environments.
-
Grounding-Ready & Streamlined: The single SHF1 sheath over the armor, with no outer oversheath, allows for direct and reliable grounding of the armor to structural hulls, panels, or trays. This design also results in a more compact cable diameter.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
Construction Details

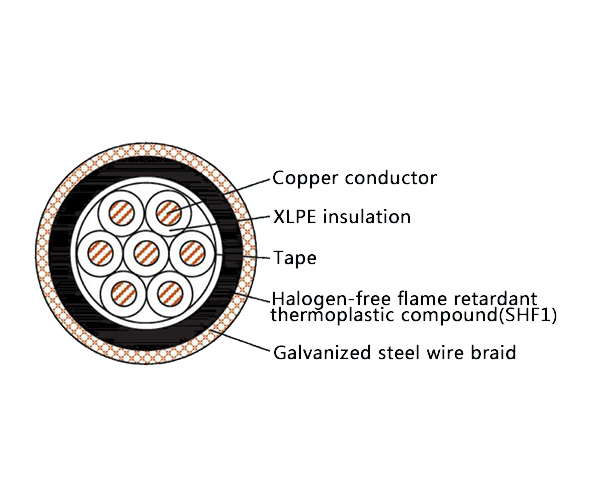

| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety and performance standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specified for critical circuits in areas with extreme physical hazards and stringent fire safety requirements, where armor grounding is essential.
-
Marine & Offshore: Vital control, power, and safety system circuits in ship engine rooms, machinery spaces, and on offshore platforms, particularly where LSHF regulations apply and the armored cable must be bonded to the ship's hull or platform structure.
-
Heavy Industrial Plants: Control and power wiring in power generation facilities, mining operations, and chemical plants exposed to severe mechanical stress and where a dedicated, grounded armor path is required for safety.
