Product Overview
The CKJV92/SA is a heavy-duty marine control cable engineered for power, lighting, and control systems in environments demanding maximum mechanical protection. It combines reliable XLPE insulation with a robust galvanized steel wire braid armor, all enclosed within a durable double-layer PVC sheath. Designed to withstand crushing forces, impact, and harsh conditions, this cable provides a dependable and safe solution for fixed installations in severe marine, offshore, and industrial settings, complying with IEC 60092 flame retardant standards.
Key Features & Benefits
-
Maximum Mechanical Protection: The galvanized steel wire braid armor provides superior resistance to crushing, impact, abrasion, and rodent damage, ensuring cable integrity in the most physically demanding applications and routes.
-
Enhanced Durability: The double-layer PVC sheath offers excellent overall mechanical toughness, moisture resistance, and protection against oils and chemicals, significantly extending cable service life in harsh environments.
-
Certified Safety & Reliability: Complies with IEC 60332 standards for flame retardancy. XLPE insulation ensures stable electrical performance and thermal endurance up to 90°C.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Outer Sheath Color: Black (other colors available upon request).

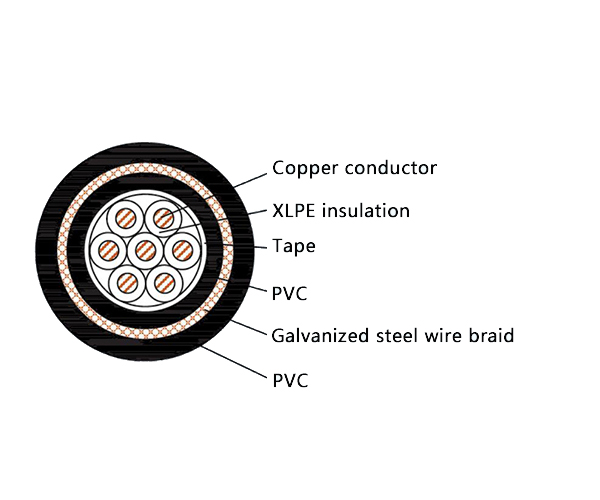

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 2 | PVC Outer Sheath |
| Flammability | SA | Bunched Cables Flame Retardant (IEC 60332-3-22) |
Standards & Compliance
This cable is designed and tested in accordance with key international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
Applications
This cable is specified for circuits installed in areas with extreme physical hazards:
-
Marine & Offshore: Power, lighting, and control systems on ships, oil rigs, and offshore platforms, especially in exposed deck areas, engine rooms, cable trays subject to heavy loads, and locations prone to mechanical impact.
-
Heavy Industrial Plants: Control and power circuits in mining operations, steel mills, power generation facilities, and chemical plants where cables are exposed to crushing, abrasion, or other severe physical stresses.
